DB62 Breakout Board
- Available with DB62HD Male or Female connector
- Perfect for DAQ and I/O Board connections
- Screw terminal for each of the 62 lines, plus shield
- Solder pad connection space for all 62 lines, plus shield
- Fast and easy connections
- Double deck screw terminals provide compact wiring
- Rubber feet or DIN rail mount
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its DB62HD connector out to screw terminals. This product is available with both male and female connectors. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.
Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, and other devices that use a DB-62HD connector.
Technically, the correct term for a DB62HD connector is DC62, but that term is not commonly used.
Need something different? We stock a couple varieties of DB62HD breakout board styles and form factors. Please have a look!
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
Product Documents
| Part # | Description | Data Sheet | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|---|
| BRKDD62HDF-R-DIN | DB62HD Female Breakout Board, DIN Mount |
|
|
|
|
|
| BRKDD62HDF-R-FT | DB62HD Female Breakout Board, Rubber Feet |
|
|
|
|
|
| BRKDD62HDF-S-DIN | DB62HD Female Breakout Board, DIN Mount, Straight Connector |
|
|
|
| |
| BRKDD62HDF-S-FT | DB62HD Female Breakout Board, Rubber Feet, Straight Connector |
|
|
|
| |
| BRKDD62HDM-R-DIN | DB62HD Male Breakout Board, DIN Mount |
|
|
|
| |
| BRKDD62HDM-R-FT | DB62HD Male Breakout Board, Rubber Feet |
|
|
|
| |
| - | D-Sub Panel Cutout Drawing |
|
|
DB62HD Female Breakout Board, DIN Mount
DB62HD Female Breakout Board, Rubber Feet
DB62HD Female Breakout Board, DIN Mount, Straight Connector
DB62HD Female Breakout Board, Rubber Feet, Straight Connector
DB62HD Male Breakout Board, DIN Mount
DB62HD Male Breakout Board, Rubber Feet
D-Sub Panel Cutout Drawing
Mounting Options

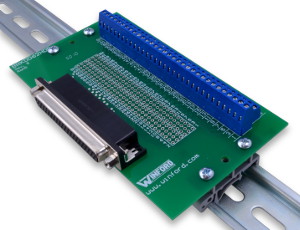

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.BRKDD62HDF-R-DIN
Click image to enlarge. Rail not included

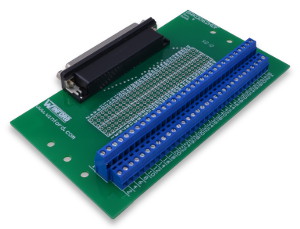

BRKDD62HDF-R-FT
Click image to enlarge.Product Details
- DB62 (high density, three row) connector
- Screw terminal for each of the 62 lines, plus shield
- Solder pad connection holes, five (5) per line
- Screw terminals accommodate wire sizes from 16AWG to 26AWG
- Approximate dimensions: 3.0" x 5.4"
- Rubber feet or DIN rail mount
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
DB62HD Female Right Angle Connector: |
|||||
| BRKDD62HDF-R-DIN | DB62HD Female Breakout Board, R/A Connector, DIN Rail Mount | $74.35 | $69.00 | Yes | |
| BRKDD62HDF-R-FT | DB62HD Female Breakout Board, R/A Connector, Feet | $72.75 | $67.40 | Yes | |
DB62HD Female Straight Connector: |
|||||
| BRKDD62HDF-S-DIN | DB62HD Female Breakout Board, Straight Connector, DIN Rail Mount | $74.35 | $69.00 | Yes | |
| BRKDD62HDF-S-FT | DB62HD Female Breakout Board, Straight Connector, Feet | $72.75 | $67.40 | Yes | |
DB62HD Male Right Angle Connector: |
|||||
| BRKDD62HDM-R-DIN | DB62HD Male Breakout Board, R/A Connector, DIN Rail Mount | $74.35 | $69.00 | Yes | |
| BRKDD62HDM-R-FT | DB62HD Male Breakout Board, R/A Connector, Feet | $72.75 | $67.40 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $74.35 |
| 10+ | $69.00 |
| Quantity | Price |
|---|---|
| 1+ | $72.75 |
| 10+ | $67.40 |
| Quantity | Price |
|---|---|
| 1+ | $74.35 |
| 10+ | $69.00 |
| Quantity | Price |
|---|---|
| 1+ | $72.75 |
| 10+ | $67.40 |
| Quantity | Price |
|---|---|
| 1+ | $74.35 |
| 10+ | $69.00 |
| Quantity | Price |
|---|---|
| 1+ | $72.75 |
| 10+ | $67.40 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
