USB B Female Breakout Board

BRKUB1F-R-DIN

BRKUB1F-R-DIN
(click image to enlarge)
BRKUB1F-R-DIN
BRKUB1F-R-FT
BRKUB1F-R-FT (Overhead View)
  • USB Type B Female Socket
  • Screw terminal for each of the 4 lines, plus shield
  • Solder pad connection space each line
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: USB Type A Breakout Board,   More Breakout Boards,   USB Breadboard Adapters,   USB Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its USB Type B connector out to screw terminals.

Each pin, including shield, is also brought to solder pads (5 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

These adapters are particularly useful for prototyping USB microcontroller circuits. Our experience so far shows that these adapters can be used with USB 2.0 High Speed signals without introducing any problems. However, please be aware that these adapters are not actually USB 2.0 High Speed certified.

This breakout board is perfect for production applications as well as experimentation and prototype work.

Need something different? We stock a variety of USB breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Note that these boards are NOT active USB devices that give you digital I/O pins for general purpose use. These are passive devices that simply provide an easy way to connect to the four USB signal wires, which carry serial communications signals.

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKUB1F-R-DINUSB Type B R/A Breakout, DIN MountPDF PDF DWG IGES CAD
BRKUB1F-R-FTUSB Type B R/A Breakout, Rubber FeetPDF PDF DWG IGES CAD
BRKUB1F-R-DIN

USB Type B R/A Breakout, DIN Mount

PDF PDF DWG IGES CAD
BRKUB1F-R-FT

USB Type B R/A Breakout, Rubber Feet

PDF PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

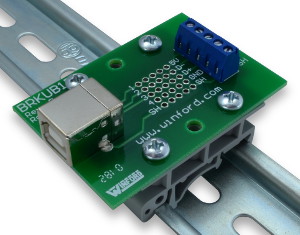

BRKUB1F-R-DIN
DIN Rail Mount
BRKUB1F-R-DIN
EnlargeClick image to enlarge.
Rail not included

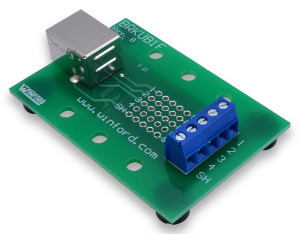

BRKUB1F-R-FT
Rubber Feet
BRKUB1F-R-FT
EnlargeClick image to enlarge.

Product Details

  • USB Type B Female Socket
  • Screw terminal for each of the 4 lines, plus shield
  • Solder pad connection holes, five (5) per line
  • Supports addition of .1" pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.38" x 1.6"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRKUB1F-R-DIN USB B Female Breakout Board, R/A Connector, DIN Rail Mount $13.40 $12.85  Yes
BRKUB1F-R-FT USB B Female Breakout Board, R/A Connector, Feet $11.75 $11.25  Yes

BRKUB1F-R-DIN
RoHS   Yes
USB B Female Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$13.40
10+$12.85
BRKUB1F-R-FT
RoHS   Yes
USB B Female Breakout Board, R/A Connector, Feet
QuantityPrice
1+$11.75
10+$11.25

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
