Universal DIN Rail Mounting Plates - Polycarbonate

Many devices are not designed for DIN rail mounting, but these universal DIN rail mounting plates solve that problem. Simply attach your device to the plate using screws, and then mount the assembly onto your 35mm DIN rail.

Winford offers these plates in a variety of sizes and DIN clip styles. The plates themselves are made from Polycarbonate clear plastic material, and are an economical alternative to our Aluminum or FR4 mounting plates.

Product Number Breakdown

Our product numbers can get a little confusing, especially since there are many product variants available. So here's a breakdown of what they mean. Note that we do not currently build all possible combinations of options; see selection matrix at the bottom of the page for all stocked parts.

	DINP	XX	- XXXX	X
Type
DINPP Plate made of 0.220" Polycarbonate, Clear
DINPQ New! Plate made of 0.375" Polycarbonate, Clear
See other material options here.
03 Right Angle DIN Clip, Plate on Left
09 One 35x68mm Nylon Din Clip
10 Two 10x43mm Nylon Din Clips
11 Two 5x33mm Nylon Din Clips
Plate Size
xxyy x.x" width × y.y" height
4060 4.0" x 6.0" (Example)
...
See more sizes of other materials here.
Mounting Options
A Solid Plate
B Mounting Holes Grid

DINP Product Selection Matrix

	Plate Size/ Material	Clip Width

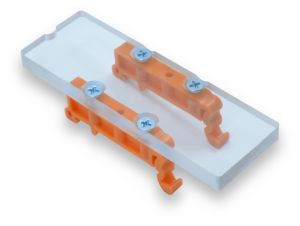

DINPP11-1030A	1.0" x 3.0" 0.22" Thick Polycarbonate	5mm

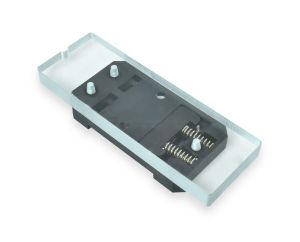

DINPQ09-1440A	1.38" x 4.0" 0.375" Thick Polycarbonate	35mm
New! DINPQ09-1460A	1.38" x 6.0" 0.375" Thick Polycarbonate	35mm
New! DINPP11-2540A	2.5" x 4.0" 0.22" Thick Polycarbonate	5mm

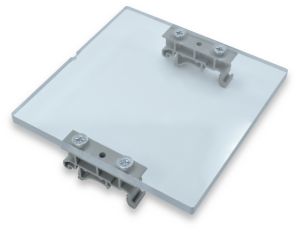

DINPP10-4040A	4.0" x 4.0" 0.22" Thick Polycarbonate	10mm

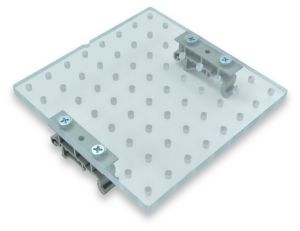

New! DINPP10-4040B2	4.0" x 4.0" 0.22" Thick Polycarbonate	10mm
New! DINPQ09-4040A	4.0" x 4.0" 0.375" Thick Polycarbonate	35mm

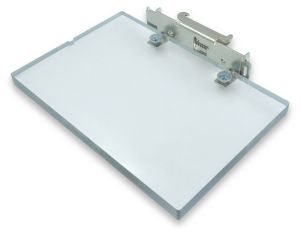

New! DINPQ03-4060A	4.0" x 6.0" 0.375" Thick Polycarbonate	25mm

Other Mounting Plate Options

Winford Engineering offers several varieties of mounting plates with various sizes, materials, and mounting options. See the entire list of plates.
