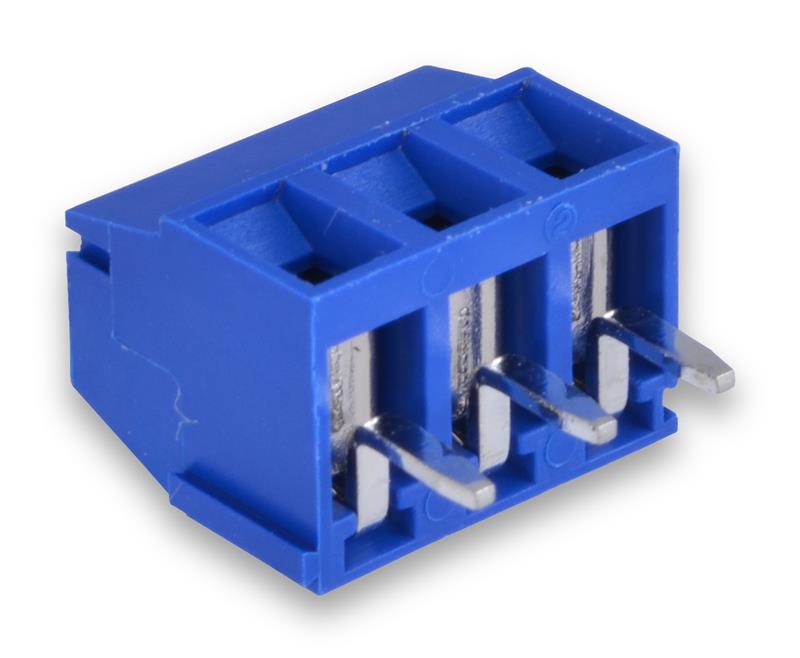

PCB Screw Terminal Blocks, 3.5mm

STBV202

(click image to enlarge)

<b>STBV303</b> (Several Ganged Together)

Quality elevator screw clamp design
Pitch between pins: 3.5 mm
RoHS Compliant

Scroll to Buy

See Also: Screw Terminals - Angled Entry

General Description

These screw terminals feature a quality "elevator screw clamp" design instead of the cheaper "leaf spring" style. This provides for secure clamping of the wire and a long product life.

These terminal blocks are designed to interlock by sliding together, allowing you to make a terminal strip as long as necessary.

Winford Engineering uses these screw terminals extensively in our own product designs.

Product Documents

Part #	Description	STEP Model	PDF Drawing
STBV302	Screw Terminal, 2-Pos
STBV303	Screw Terminal, 3-Pos

STBV302

Screw Terminal, 2-Pos

STBV303

Screw Terminal, 3-Pos

Product Details

Quality elevator screw clamp design
Pitch between pins: 3.5 mm
Wire size range: 16 AWG to 26 AWG
Rated: 10 Amp, 300 VAC
Slotted screw heads
Housing: Polyamide 66, Blue
Wire Entry: Horizontal
RoHS Compliant

Need a quality screwdriver for Winford STAx or STBx screw terminals? Winford sells Wiha screwdrivers, which are a perfect fit!

Pricing and Ordering

Product #	Description	1+	10+	100+	RoHS	Buy Now
STBV302	Screw Terminal Block, 3.5mm Pitch, 2-Position	$0.65	$0.61	$0.52	Yes
STBV303	Screw Terminal Block, 3.5mm Pitch, 3-Position	$0.75	$0.71	$0.62	Yes

STBV302

RoHS Yes

Screw Terminal Block, 3.5mm Pitch, 2-Position

Quantity	Price
1+	$0.65
10+	$0.61
100+	$0.52

STBV303

RoHS Yes

Screw Terminal Block, 3.5mm Pitch, 3-Position

Quantity	Price
1+	$0.75
10+	$0.71
100+	$0.62

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
