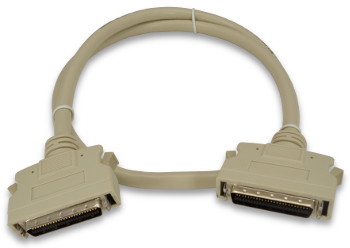

MDR (Mini Delta Ribbon) 50-Pin Cables
- MDR 50-pin connectors
- Male connector on each end
- Overmolded ends with strain reliefs
- Twisted pair wiring with cable shield
General Description
Use these cables to interconnect equipment which utilizes 50-pin MDR (Mini Delta Ribbon) connectors. These attractive cables feature 50-pin MDR Male connectors on each end, overmolded ends with strain reliefs, twisted pair wiring, and a shielded cable jacket. Latches secure the cable to the mating connector. Two cable lengths (3 feet and 6 feet) are available. These cables are general purpose and are compatible with Winford Engineering's 50-pin Mini D-Ribbon breakout boards.
MDR Connector Details
The Mini Delta Ribbon (MDR) series of connectors provides a compact arrangement of durable sliding 'ribbon' contacts. The high contact density and good performance at high speeds have yielded many applications for this connector type. These are 'half-pitch' connectors, meaning that the contact spacing is tighter than full-size Centronics connectors, such as those used on our BRKDC36F or BRKDC50F breakout boards. The 'half-pitch' connectors utilize contacts on 0.05" centers.
Twisted Pairing
This cable utilizes twisted pair wiring. The pair mapping is as follows: 1/2, 3/4 ... 47/48, 49/50.
Mini D-Ribbon Breakout Boards
These MDR cables are compatible with Winford Engineering's 50-pin Mini D-Ribbon breakout boards, shown below.
Click image to enlarge.
Click image to enlarge.Product Documents
| Part # | Description | Data Sheet | PDF Drawing | DWG Drawing |
|---|---|---|---|---|
| CBMDR50MA-x | MDR 50-pin Male-Male Cable |
|
|
|
MDR 50-pin Male-Male Cable
Applications and Compatible Connectors
These cables are general-purpose and can interface to a variety of equipment. One common usage is in the servo drive / servo controller market, which often uses the 50-pin MDR connector to interface to other equipment. Servo equipment with the 50-pin MDR connector, and other compatible connector series includes, but is not limited to, the following:
- Mitsubishi MELSERVO (MR family -- MR-J3, etc)
- Yaskawa MP940, MP3200, MP Series, MPiec series, and others
- Panasonic MINAS series
- Applied Motion Products Servo Drives such as SV2A, SV2B, and SV2D drives
- TE/Tyco "SCSI 0.050" connector series e.g. 5-2232346-1, 5-2271101-1, 5-2232516-1, and others
- TE "CHAMP Series II" connector series e.g. 5175677-8, 2-5178238-8, and others
- and others...
Product Details
- MDR 50-pin connectors
- Overmolded ends with strain reliefs
- Twisted pair wiring with cable shield
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| CBMDR50MA-3 | Mini D Ribbon (MDR) Cable, 50-Pin Male-Male, Latches, 3Ft | $27.50 | $22.00 | Yes | |
| CBMDR50MA-6 | Mini D Ribbon (MDR) Cable, 50-Pin Male-Male, Latches, 6Ft | $31.50 | $26.50 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $27.50 |
| 10+ | $22.00 |
| Quantity | Price |
|---|---|
| 1+ | $31.50 |
| 10+ | $26.50 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
