Mini Delta Ribbon (MDR) 80-Pin Breakout Board
- Mini Delta Ribbon connector (68-pin shown below)
- Screw terminal for each of the 80 lines, plus shield
- Solder pad connection space for all 80 lines, plus shield
- Rubber feet or DIN rail mount
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its 80-pin Mini D Ribbon (MDR) Female connector out to screw terminals.
Each pin, including shield, is also brought to solder pads (2 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with Data Aquisition (DAQ) equipment, I/O cards, and other devices that use a Mini D Ribbon connector.
We stock several MDR breakout board styles and form factors. Please have a look here.
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
MDR Connector Details
The Mini Delta Ribbon (MDR) series of connectors provides a compact arrangement of durable sliding 'ribbon' contacts. The high contact density and good performance at high speeds have yielded many applications for this connector type. These are 'half-pitch' connectors, meaning that the contact spacing is tighter than full-size Centronics connectors, such as those used on our BRKDC36F or BRKDC50F breakout boards. The 'half-pitch' connectors utilize contacts on 0.05" centers.
Winford Engineering currently utilizes MDR connectors from 3M™ on these breakout boards; connector details are listed below.
| MDR Connector Details | |
|---|---|
| Manufacturer | 3M |
| Mfg. Part # | Vertical: 10280-6212PC |
| Threaded Inserts | Vertical: M2.5 |
| Latch Blocks | Present |
| Jack Sockets | Not Included |
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model | Document |
|---|---|---|---|---|---|---|
| BRKAMC80F-S-DIN | 80-Pin MDR Female, DIN Mount |
|
|
|
| |
| BRKAMC80F-S-FT | 80-Pin MDR Female, Rubber Feet |
|
|
|
| |
| Connector Guide | Which connector do I have? Consult this helpful identification guide. |
|
80-Pin MDR Female, DIN Mount
80-Pin MDR Female, Rubber Feet
Which connector do I have? Consult this helpful identification guide.
Mounting Options

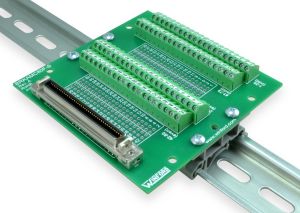

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.BRKAMC80F-S-DIN
Click image to enlarge. Rail not included

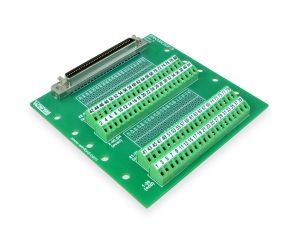

BRKAMC80F-S-FT
Click image to enlarge.Product Details
- Mini D-Ribbon (Mini Delta Ribbon, MDR, Mini Centronics) 80-pin connector
- Screw terminal for each of the 80 lines, plus shield
- Screw terminals accommodate wire sizes from 16AWG to 26AWG
- Rubber feet or DIN rail mount
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| BRKAMC80F-S-DIN | Mini Centronics/MDR 80-Pin Female Breakout Board, Straight Connector, DIN Rail Mount | $101.65 | $97.35 | Yes | |
| BRKAMC80F-S-FT | Mini Centronics/MDR 80-Pin Female Breakout Board, Straight Connector, Feet | $100.05 | $95.75 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $101.65 |
| 10+ | $97.35 |
| Quantity | Price |
|---|---|
| 1+ | $100.05 |
| 10+ | $95.75 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
