DIP Component to Screw Terminal Adapter Board

<b>DTA3506-DIN</b> (6-Pin DIP Package)

DTA3506-DIN (6-Pin DIP Package)
(click image to enlarge)
<b>DTA3506-DIN</b> (6-Pin DIP Package)
<b>DTA3506-FT</b> (6-Pin DIP Package)
<b>DTA3508-DIN</b> (8-Pin DIP Package)
<b>DTA3508-FT</b> (8-Pin DIP Package)
<b>DTA3508-FT</b> (Application)
<b>DTA3514-DIN</b> (14-Pin DIP Package)

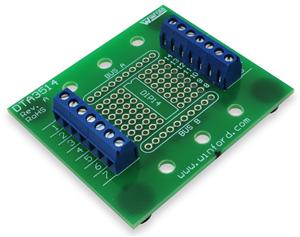

<b>DTA3514-FT</b> (14-Pin DIP Package)
<b>DTA3516-DIN</b> (16-Pin DIP Package)
<b>DTA3516-FT</b> (16-Pin DIP Package)
<b>DTA3520-DIN</b> (20-Pin DIP Package)
<b>DTA3520-FT</b> (20-Pin DIP Package)
<b>DTA3524-DIN</b> (24-Pin DIP Package)
<b>DTA3524-FT</b> (24-Pin DIP Package)
<b>DTB3528V1-DIN</b> (28-Pin DIP Package)
<b>DTB3528V1-FT</b> (28-Pin DIP Package)
<b>DTB3532V1-DIN</b> (32-Pin DIP Package)
<b>DTB3532V1-FT</b> (32-Pin DIP Package)
<b>DTB3540V1-DIN</b> (40-Pin DIP Package)
<b>DTB3540V1-FT</b> (40-Pin DIP Package)
  • Easily connect to DIP components via screw terminals
  • Several pin counts available: 6, 8, 14, 16, 20, 24, 28, 32, 40 pins
  • Makes field wiring simple
  • Soldering area for additional components
Scroll to Buy
Custom Products
See Also: Terminal Boards,   Breakout Boards

General Description

These adapter boards / breakout boards are DIP component holders which greatly simplify and streamline the wiring process. Once a component is installed in the adapter board, simply connect to each component pin via the corresponding screw terminal. The best way to install DIP devices is to simply solder them into the provided solder pads on the adapter board. Please note that these adapter boards boards are manufactured with a connection between each DIP pin solder pad and the corresponding screw terminal; no soldering of any type is necessary beyond soldering the DIP device into the board. The remaining solder pads for each component pin simply provide an area for making optional connections to headers or other components.

In addition, two additional busses of solder pads ('Bus A' and 'Bus B') are provided for convenient distribution of signals such as power and ground.

Adapter boards for several of the common DIP package pin counts are available. The solder pads on the board accommodate 0.3" and 0.6" footprint DIP packages.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelData Sheet
DTA3506-DIN6-pin DIP, DIN MountPDF DWG IGES CAD
DTA3506-FT6-pin DIP, Rubber FeetPDF DWG IGES CAD
DTA3508-DIN8-pin DIP, DIN MountPDF DWG IGES CAD PDF
DTA3508-FT8-pin DIP, Rubber FeetPDF DWG IGES CAD PDF
DTA3514-DIN14-pin DIP, DIN MountPDF DWG IGES CAD PDF
DTA3514-FT14-pin DIP, Rubber FeetPDF DWG IGES CAD PDF
DTA3516-DIN16-pin DIP, DIN MountPDF DWG IGES CAD PDF
DTA3516-FT16-pin DIP, Rubber FeetPDF DWG IGES CAD PDF
DTA3520-DIN20-pin DIP, DIN MountPDF DWG IGES CAD PDF
DTA3520-FT20-pin DIP, Rubber FeetPDF DWG IGES CAD PDF
DTA3524-DIN24-pin DIP, DIN MountPDF DWG IGES CAD PDF
DTA3524-FT24-pin DIP, Rubber FeetPDF DWG IGES CAD PDF
DTB3528V1-DIN28-pin DIP, DIN MountPDF DWG IGES CAD
DTB3528V1-FT28-pin DIP, Rubber FeetPDF DWG IGES CAD
DTB3532V1-DIN32-pin DIP, DIN MountPDF DWG IGES CAD
DTB3532V1-FT32-pin DIP, Rubber FeetPDF DWG IGES CAD
DTB3540V1-DIN40-pin DIP, DIN MountPDF DWG IGES CAD
DTB3540V1-FT40-pin DIP, Rubber FeetPDF DWG IGES CAD
DTA3506-DIN

6-pin DIP, DIN Mount

PDF DWG IGES CAD
DTA3506-FT

6-pin DIP, Rubber Feet

PDF DWG IGES CAD
DTA3508-DIN

8-pin DIP, DIN Mount

PDF PDF DWG IGES CAD
DTA3508-FT

8-pin DIP, Rubber Feet

PDF PDF DWG IGES CAD
DTA3514-DIN

14-pin DIP, DIN Mount

PDF PDF DWG IGES CAD
DTA3514-FT

14-pin DIP, Rubber Feet

PDF PDF DWG IGES CAD
DTA3516-DIN

16-pin DIP, DIN Mount

PDF PDF DWG IGES CAD
DTA3516-FT

16-pin DIP, Rubber Feet

PDF PDF DWG IGES CAD
DTA3520-DIN

20-pin DIP, DIN Mount

PDF PDF DWG IGES CAD
DTA3520-FT

20-pin DIP, Rubber Feet

PDF PDF DWG IGES CAD
DTA3524-DIN

24-pin DIP, DIN Mount

PDF PDF DWG IGES CAD
DTA3524-FT

24-pin DIP, Rubber Feet

PDF PDF DWG IGES CAD
DTB3528V1-DIN

28-pin DIP, DIN Mount

PDF DWG IGES CAD
DTB3528V1-FT

28-pin DIP, Rubber Feet

PDF DWG IGES CAD
DTB3532V1-DIN

32-pin DIP, DIN Mount

PDF DWG IGES CAD
DTB3532V1-FT

32-pin DIP, Rubber Feet

PDF DWG IGES CAD
DTB3540V1-DIN

40-pin DIP, DIN Mount

PDF DWG IGES CAD
DTB3540V1-FT

40-pin DIP, Rubber Feet

PDF DWG IGES CAD

Product Details

  • Easily connect to DIP components via screw terminals
  • Several pin counts available: 6, 8, 14, 16, 20, 24, 28, 32, 40 pins
  • Extra solder pads for each DIP pin are provided on the board to allow the addition of small components such as diodes, capacitors, resistors, etc.
  • Buses: Two groups of extra solder pads form buses for power distribution, etc. Bus A is located at the top of the board, and Bus B is at the bottom of the board.
  • Screw Terminals: Each DIP pin is accessible via a clearly numbered screw terminal. This makes wiring quick and easy.
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DTA3506-DIN DIP Component to Screw Terminal Adapter Board, 6 Pin, DIN Rail Mount $10.15 $9.35  Yes
DTA3506-FT DIP Component to Screw Terminal Adapter Board, 6 Pin, Feet $8.55 $7.75  Yes
DTA3508-DIN DIP Component to Screw Terminal Adapter Board, 8 Pin, DIN Rail Mount $12.85 $12.05  Yes
DTA3508-FT DIP Component to Screw Terminal Adapter Board, 8 Pin, Feet $11.25 $10.45  Yes
DTA3514-DIN DIP Component to Screw Terminal Adapter Board, 14 Pin, DIN Rail Mount $13.65 $12.85  Yes
DTA3514-FT DIP Component to Screw Terminal Adapter Board, 14 Pin, Feet $12.05 $11.25  Yes
DTA3516-DIN DIP Component to Screw Terminal Adapter Board, 16 Pin, DIN Rail Mount $13.90 $13.10  Yes
DTA3516-FT DIP Component to Screw Terminal Adapter Board, 16 Pin, Feet $12.30 $11.50  Yes
DTA3520-DIN DIP Component to Screw Terminal Adapter Board, 20 Pin, DIN Rail Mount $14.45 $13.65  Yes
DTA3520-FT DIP Component to Screw Terminal Adapter Board, 20 Pin, Feet $12.85 $12.05  Yes
DTA3524-DIN DIP Component to Screw Terminal Adapter Board, 24 Pin, DIN Rail Mount $15.25 $14.45  Yes
DTA3524-FT DIP Component to Screw Terminal Adapter Board, 24 Pin, Feet $13.65 $12.85  Yes
DTB3528V1-DIN DIP Component to Screw Terminal Adapter Board, 28 Pin, DIN Rail Mount $16.85 $16.05  Yes
DTB3528V1-FT DIP Component to Screw Terminal Adapter Board, 28 Pin, Feet $15.25 $14.45  Yes
DTB3532V1-DIN DIP Component to Screw Terminal Adapter Board, 32 Pin, DIN Rail Mount $17.65 $16.85  Yes
DTB3532V1-FT DIP Component to Screw Terminal Adapter Board, 32 Pin, Feet $16.05 $15.25  Yes
DTB3540V1-DIN DIP Component to Screw Terminal Adapter Board, 40 Pin, DIN Rail Mount $19.50 $18.60  Yes
DTB3540V1-FT DIP Component to Screw Terminal Adapter Board, 40 Pin, Feet $17.80 $16.95  Yes
DTA3506-DIN
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 6 Pin, DIN Rail Mount
QuantityPrice
1+$10.15
10+$9.35
DTA3506-FT
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 6 Pin, Feet
QuantityPrice
1+$8.55
10+$7.75
DTA3508-DIN
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 8 Pin, DIN Rail Mount
QuantityPrice
1+$12.85
10+$12.05
DTA3508-FT
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 8 Pin, Feet
QuantityPrice
1+$11.25
10+$10.45
DTA3514-DIN
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 14 Pin, DIN Rail Mount
QuantityPrice
1+$13.65
10+$12.85
DTA3514-FT
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 14 Pin, Feet
QuantityPrice
1+$12.05
10+$11.25
DTA3516-DIN
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 16 Pin, DIN Rail Mount
QuantityPrice
1+$13.90
10+$13.10
DTA3516-FT
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 16 Pin, Feet
QuantityPrice
1+$12.30
10+$11.50
DTA3520-DIN
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 20 Pin, DIN Rail Mount
QuantityPrice
1+$14.45
10+$13.65
DTA3520-FT
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 20 Pin, Feet
QuantityPrice
1+$12.85
10+$12.05
DTA3524-DIN
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 24 Pin, DIN Rail Mount
QuantityPrice
1+$15.25
10+$14.45
DTA3524-FT
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 24 Pin, Feet
QuantityPrice
1+$13.65
10+$12.85
DTB3528V1-DIN
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 28 Pin, DIN Rail Mount
QuantityPrice
1+$16.85
10+$16.05
DTB3528V1-FT
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 28 Pin, Feet
QuantityPrice
1+$15.25
10+$14.45
DTB3532V1-DIN
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 32 Pin, DIN Rail Mount
QuantityPrice
1+$17.65
10+$16.85
DTB3532V1-FT
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 32 Pin, Feet
QuantityPrice
1+$16.05
10+$15.25
DTB3540V1-DIN
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 40 Pin, DIN Rail Mount
QuantityPrice
1+$19.50
10+$18.60
DTB3540V1-FT
RoHS   Yes
DIP Component to Screw Terminal Adapter Board, 40 Pin, Feet
QuantityPrice
1+$17.80
10+$16.95

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
