Screw Terminal Board / Component Holder / Distribution

TTA3510-DIN

TTA3510-DIN
(click image to enlarge)
TTA3510-DIN
TTA3510-FT
TTA3515-DIN
TTA3515-FT
TTA3505-DIN
TTA3505-FT
TTA3505-FT (Overhead View)
TTA3520V1-DIN
TTA3520V1-FT
TTA3520V1-FT (Overhead View)
  • Easily join wires with no soldering
  • Useful for wire interfacing and termination
  • Make connections to small components
  • 5, 10, 15, & 20 position available
  • Rubber feet or DIN rail mount
Scroll to Buy
Custom Products
See Also: DIP Chip Holder Boards,   Breakout Boards

General Description

This board is useful for a variety of different purposes:

  • Wire-to-wire termination: Easily terminate and join wires together. This board comes with each screw terminal connected directly to the corresponding screw terminal on the opposite edge of the board, which allows joining 10 sets of wires (TTA3510) or 15 sets of wires (TTA3515V1).
  • Component holder: Solder pads are provided on the board to allow adding small components such as diodes, capacitors, resistors, etc. To insert a component in series with the screw terminals, cut the appropriate PCB trace in the middle of the board and solder in the component. Note that although the columns of pads are arranged on 0.1" spacing, the rows are not, so this board cannot be used for holding DIP IC chips. For DIP chips, please see our DIP Component to Screw Terminal Adapters.
  • Bus / Distribution: If you are joining a number of wires all to the same connection (such as power, ground, etc), you may wish to solder jumper wires on the solder pads to join additional screw terminals into a bus.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
TTA3510-DIN
DIN Rail Mount
TTA3510-DIN
EnlargeClick image to enlarge.
Rail not included

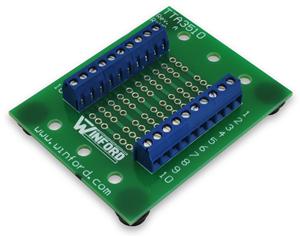

TTA3510-FT
Rubber Feet
TTA3510-FT
EnlargeClick image to enlarge.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelData Sheet
TTA3505-DIN5-Position, DIN MountPDF DWG IGES CAD
TTA3505-FT5-Position, Rubber FeetPDF DWG IGES CAD
TTA3510-DIN10-Position, DIN MountPDF DWG IGES CAD PDF
TTA3510-FT10-Position, Rubber FeetPDF DWG IGES CAD PDF
TTA3515V1-DIN15-Position, DIN MountPDF DWG IGES CAD PDF
TTA3515V1-FT15-Position, Rubber FeetPDF DWG IGES CAD PDF
TTA3520V1-DIN20-Position, DIN MountPDF DWG IGES CAD
TTA3520V1-FT20-Position, Rubber FeetPDF DWG IGES CAD
TTA3505-DIN

5-Position, DIN Mount

PDF DWG IGES CAD
TTA3505-FT

5-Position, Rubber Feet

PDF DWG IGES CAD
TTA3510-DIN

10-Position, DIN Mount

PDF PDF DWG IGES CAD
TTA3510-FT

10-Position, Rubber Feet

PDF PDF DWG IGES CAD
TTA3515V1-DIN

15-Position, DIN Mount

PDF PDF DWG IGES CAD
TTA3515V1-FT

15-Position, Rubber Feet

PDF PDF DWG IGES CAD
TTA3520V1-DIN

20-Position, DIN Mount

PDF DWG IGES CAD
TTA3520V1-FT

20-Position, Rubber Feet

PDF DWG IGES CAD

Product Details

  • 5, 10, 15, & 20 position available
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
5-Position:
TTA3505-DIN Screw Terminal Board / Component Holder, 5 Position, DIN Rail Mount $10.45 $9.90 $9.05  Yes
TTA3505-FT Screw Terminal Board / Component Holder, 5 Position, Feet $8.85 $8.30 $7.45  Yes
10-Position:
TTA3510-DIN Screw Terminal Board / Component Holder, 10 Position, DIN Rail Mount $14.45 $13.65 $13.65  Yes
TTA3510-FT Screw Terminal Board / Component Holder, 10 Position, Feet $12.85 $12.05 $12.05  Yes
15-Position:
TTA3515V1-DIN Screw Terminal Board / Component Holder, 15 Position, DIN Rail Mount $17.40 $16.60 $16.60  Yes
TTA3515V1-FT Screw Terminal Board / Component Holder, 15 Position, Feet $15.80 $15.00 $15.00  Yes
20-Position:
TTA3520V1-DIN Screw Terminal Board / Component Holder, 20 Position, DIN Rail Mount $21.40 $20.60 $20.60  Yes
TTA3520V1-FT Screw Terminal Board / Component Holder, 20 Position, Feet $19.80 $19.00 $19.00  Yes
5-Position:
TTA3505-DIN
RoHS   Yes
Screw Terminal Board / Component Holder, 5 Position, DIN Rail Mount
QuantityPrice
1+$10.45
10+$9.90
50+$9.05
TTA3505-FT
RoHS   Yes
Screw Terminal Board / Component Holder, 5 Position, Feet
QuantityPrice
1+$8.85
10+$8.30
50+$7.45
10-Position:
TTA3510-DIN
RoHS   Yes
Screw Terminal Board / Component Holder, 10 Position, DIN Rail Mount
QuantityPrice
1+$14.45
10+$13.65
50+$13.65
TTA3510-FT
RoHS   Yes
Screw Terminal Board / Component Holder, 10 Position, Feet
QuantityPrice
1+$12.85
10+$12.05
50+$12.05
15-Position:
TTA3515V1-DIN
RoHS   Yes
Screw Terminal Board / Component Holder, 15 Position, DIN Rail Mount
QuantityPrice
1+$17.40
10+$16.60
50+$16.60
TTA3515V1-FT
RoHS   Yes
Screw Terminal Board / Component Holder, 15 Position, Feet
QuantityPrice
1+$15.80
10+$15.00
50+$15.00
20-Position:
TTA3520V1-DIN
RoHS   Yes
Screw Terminal Board / Component Holder, 20 Position, DIN Rail Mount
QuantityPrice
1+$21.40
10+$20.60
50+$20.60
TTA3520V1-FT
RoHS   Yes
Screw Terminal Board / Component Holder, 20 Position, Feet
QuantityPrice
1+$19.80
10+$19.00
50+$19.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
