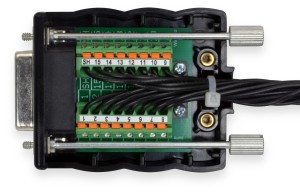

DB15 Breakout Board with Enclosure

BRKEGD15F-T (Wires Not Included)

(click image to enlarge)

Available with DB15 Male or Female connector
Comes mounted in an enclosure
Cost effective and reliable cable termination
Terminal for each of the 15 lines, plus shield
Available with spring terminals or screw terminals
Convenient strain relief feature for wires
No soldering or crimping required
Available with Jack Screws or Thumbscrews

Scroll to Buy

General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15 connector out to screw or spring terminals. This breakout board comes mounted in an attractive case. It is available with either Thumbscrews or Jack Screws for connector hardware. See pricing table below for all part numbers. This product is available with both male and female connectors.

Note: This product contains the 'standard density' DB15 connector with 2 rows of pins. See the DB15HD products for the 3-row 'high density' 15-pin DSUB connector.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, CNC equipment, and other devices that use a DB-15 connector.

Technically, the correct term for a DB15 connector is DA15, but that term is not commonly used.

Need something different? We stock a variety of DB15 breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Enclosure

The breakout board comes already installed in a sturdy black plastic hood enclosure / shell with a removable cover. A hole in the end provides ample space for conductors to exit the enclosure, and a convenient strain-relief feature allows wires to be easily secured with a zip tie in just seconds. A curved channel guides the zip tie (included) around the wire bundle and back up for cinching.

Product Documents

Part #	Revision	Description
BRKEAD15F-R	A	DB15 Female, Screw Terminals, Jack Screws
BRKEAD15F-T	A	DB15 Female, Screw Terminals, Thumb Screws
BRKEAD15M-R	A	DB15 Male, Screw Terminals, Jack Screws
BRKEAD15M-T	A	DB15 Male, Screw Terminals, Thumb Screws
BRKEGD15F-R	A	DB15 Female, Spring Terminals, Jack Screws
BRKEGD15F-T	A	DB15 Female, Spring Terminals, Thumb Screws
BRKEGD15M-R	A	DB15 Male, Spring Terminals, Jack Screws
BRKEGD15M-T	A	DB15 Male, Spring Terminals, Thumb Screws
-		D-Sub Panel Cutout Drawing

BRKEAD15F-R Revision: A

DB15 Female, Screw Terminals, Jack Screws

BRKEAD15F-T Revision: A

DB15 Female, Screw Terminals, Thumb Screws

BRKEAD15M-R Revision: A

DB15 Male, Screw Terminals, Jack Screws

BRKEAD15M-T Revision: A

DB15 Male, Screw Terminals, Thumb Screws

BRKEGD15F-R Revision: A

DB15 Female, Spring Terminals, Jack Screws

BRKEGD15F-T Revision: A

DB15 Female, Spring Terminals, Thumb Screws

BRKEGD15M-R Revision: A

DB15 Male, Spring Terminals, Jack Screws

BRKEGD15M-T Revision: A

DB15 Male, Spring Terminals, Thumb Screws

D-Sub Panel Cutout Drawing

Terminal Options

This product is available with two different wire terminal options:

Spring Terminals (BRKEGx): Spring terminals allow connections to be made very quickly and efficiently. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. In addition, screwless spring connections can be attractive in environments where vibration could potentially loosen connections.
Screw Terminals (BRKEAx): Each connection is made by turning a screw to tighten the wire in a terminal cage clamp.
Spring Terminals
Click image to enlarge.

Screw Terminals
Click image to enlarge.

Hardware Options

This product is available in two different connector hardware options:

Thumbscrews (-T option): These work well for attaching the product directly to a piece of equipment; the male threads on the thumbscrews directly engage the female threads on the equipment.
Jack Screws (-R option): These provide female threads on the product and work well when attaching the product to a cable, which typically has male thread thumbscrews.
Thumbscrews (-T option)
Click image to enlarge.

Jack Screws (-R option)
Click image to enlarge.

Product Details

Comes mounted in an enclosure
Cost effective and reliable cable termination
DB15 connector
Terminal for each of the 15 lines, plus shield
Available with spring terminals or screw terminals
Terminals accommodate wire sizes from 16AWG to 24AWG
Convenient strain relief feature for wires
Connection points are labeled with pin numbers
No soldering or crimping required
Available with Jack Screws or Thumbscrews
Approximate dimensions: 2.9"L x 1.9"W x 0.8"H

Accessories

Cable Ties

Use these cable ties for anchoring wires to a variety of Winford breakout boards; provides good strain relief for the wire connections.

Pricing and Ordering

Product #	Description	1+	10+	50+	RoHS
DB15 Female Connector, Screw Terminals:
BRKEAD15F-R	DB15 Female Breakout Board with Enclosure, Screw Terminals, Jack Screws	$17.65	$16.60	$16.05	Yes
BRKEAD15F-T	DB15 Female Breakout Board with Enclosure, Screw Terminals, Thumb Screws	$19.80	$18.75	$18.20	Yes
DB15 Female Connector, Spring Terminals:
BRKEGD15F-R	DB15 Female Breakout Board with Enclosure, Spring Terminals, Jack Screws	$17.65	$16.60	$16.05	Yes
BRKEGD15F-T	DB15 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws	$19.80	$18.75	$18.20	Yes
DB15 Male Connector, Screw Terminals:
BRKEAD15M-R	DB15 Male Breakout Board with Enclosure, Screw Terminals, Jack Screws	$17.65	$16.60	$16.05	Yes
BRKEAD15M-T	DB15 Male Breakout Board with Enclosure, Screw Terminals, Thumb Screws	$19.80	$18.75	$18.20	Yes
DB15 Male Connector, Spring Terminals:
BRKEGD15M-R	DB15 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws	$17.65	$16.60	$16.05	Yes
BRKEGD15M-T	DB15 Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws	$19.80	$18.75	$18.20	Yes

DB15 Female Connector, Screw Terminals:

BRKEAD15F-R

RoHS Yes

DB15 Female Breakout Board with Enclosure, Screw Terminals, Jack Screws

Quantity	Price
1+	$17.65
10+	$16.60
50+	$16.05

BRKEAD15F-T

RoHS Yes

DB15 Female Breakout Board with Enclosure, Screw Terminals, Thumb Screws

Quantity	Price
1+	$19.80
10+	$18.75
50+	$18.20

DB15 Female Connector, Spring Terminals:

BRKEGD15F-R

RoHS Yes

DB15 Female Breakout Board with Enclosure, Spring Terminals, Jack Screws

Quantity	Price
1+	$17.65
10+	$16.60
50+	$16.05

BRKEGD15F-T

RoHS Yes

DB15 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws

Quantity	Price
1+	$19.80
10+	$18.75
50+	$18.20

DB15 Male Connector, Screw Terminals:

BRKEAD15M-R

RoHS Yes

DB15 Male Breakout Board with Enclosure, Screw Terminals, Jack Screws

Quantity	Price
1+	$17.65
10+	$16.60
50+	$16.05

BRKEAD15M-T

RoHS Yes

DB15 Male Breakout Board with Enclosure, Screw Terminals, Thumb Screws

Quantity	Price
1+	$19.80
10+	$18.75
50+	$18.20

DB15 Male Connector, Spring Terminals:

BRKEGD15M-R

RoHS Yes

DB15 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws

Quantity	Price
1+	$17.65
10+	$16.60
50+	$16.05

BRKEGD15M-T

RoHS Yes

DB15 Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws

Quantity	Price
1+	$19.80
10+	$18.75
50+	$18.20

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
