DB15HD Breakout Board with Enclosure

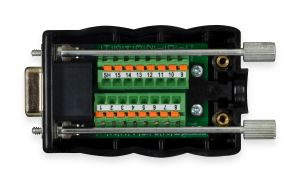

BRKEGD15HDF-T (Overhead View)

BRKEGD15HDF-T (Overhead View)
(click image to enlarge)
BRKEGD15HDF-T (Wires Not Included)
BRKEGD15HDF-T
BRKEAD15HDF-T
BRKEGD15HDF-T (Overhead View)
BRKEAD15HDF-T (Overhead View)
BRKEGD15HDF-T (View of Strain Relief)
BRKEGD15HDF-T (Enclosure Cover in Place)
BRKEGD15HDF-T (View of Connector)
BRKEGD15HDF-T (View of Thumbscrews)
BRKEGD15HDF-T (Installation Example)
BRKEGD15HDF-R
BRKEGD15HDM-T
BRKEGD15HDM-R
BRKEAD15HDF-R
BRKEAD15HDM-T
BRKEAD15HDM-R

  • Available with DB15HD (High Density) Male or Female connector
  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • Terminal for each of the 15 lines, plus shield
  • Available with spring terminals or screw terminals
  • Convenient strain relief feature for wires
  • No soldering or crimping required
  • Available with Jack Screws or Thumbscrews
See Also: More DB15HD Breakout Boards,   DB15HD Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15HD connector out to screw or spring terminals. This breakout board comes mounted in an attractive case. It is available with either Thumbscrews or Jack Screws for connector hardware. See pricing table below for all part numbers. This product is available with both male and female connectors.

Note: This product contains the 'high density' DB15HD connector with 3 rows of pins. See the DB15 products for the 2-row 'standard density' 15-pin DSUB connector.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, CNC equipment, and other devices that uses a DB-15HD connector.

Technically, the correct term for a DB15HD connector is DE15, but that term is not commonly used.

Need something different? We stock a variety of DB15HD breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Enclosure

The breakout board comes already installed in a sturdy black plastic hood enclosure / shell with a removable cover. A hole in the end provides ample space for conductors to exit the enclosure, and a convenient strain-relief feature allows wires to be easily secured with a zip tie in just seconds. A curved channel guides the zip tie (included) around the wire bundle and back up for cinching.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKEAD15HDF-RDB15HD Female, Screw Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEAD15HDF-TDB15HD Female, Screw Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEAD15HDM-RDB15HD Male, Screw Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEAD15HDM-TDB15HD Male, Screw Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEGD15HDF-RDB15HD Female, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD15HDF-TDB15HD Female, Spring Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEGD15HDM-RDB15HD Male, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD15HDM-TDB15HD Male, Spring Terminals, Thumb ScrewsPDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRKEAD15HDF-R

DB15HD Female, Screw Terminals, Jack Screws

PDF DWG IGES CAD
BRKEAD15HDF-T

DB15HD Female, Screw Terminals, Thumb Screws

PDF DWG IGES CAD
BRKEAD15HDM-R

DB15HD Male, Screw Terminals, Jack Screws

PDF DWG IGES CAD
BRKEAD15HDM-T

DB15HD Male, Screw Terminals, Thumb Screws

PDF DWG IGES CAD
BRKEGD15HDF-R

DB15HD Female, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD15HDF-T

DB15HD Female, Spring Terminals, Thumb Screws

PDF DWG IGES CAD
BRKEGD15HDM-R

DB15HD Male, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD15HDM-T

DB15HD Male, Spring Terminals, Thumb Screws

PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Terminal Options

This product is available with two different wire terminal options:
  • Spring Terminal Animation
    Spring Terminals (BRKEGx): Spring terminals allow connections to be made very quickly and efficiently. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. In addition, screwless spring connections can be attractive in environments where vibration could potentially loosen connections.
  • Screw Terminals (BRKEAx): Each connection is made by turning a screw to tighten the wire in a terminal cage clamp.
    Spring Terminals
    Spring Terminals
    EnlargeClick image to enlarge.
    Screw Terminals
    Screw Terminals
    EnlargeClick image to enlarge.

Hardware Options

This product is available in two different connector hardware options:
  • Thumbscrews (-T option): These work well for attaching the product directly to a piece of equipment; the male threads on the thumbscrews directly engage the female threads on the equipment.
  • Jack Screws (-R option): These provide female threads on the product and work well when attaching the product to a cable, which typically has male thread thumbscrews.
    Thumbscrews (-T option)
    Thumbscrews (-T option)
    EnlargeClick image to enlarge.
    Jack Screws (-R option)
    Jack Screws (-R option)
    EnlargeClick image to enlarge.

Product Details

  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • DB15HD (High Density) connector
  • Terminal for each of the 15 lines, plus shield
  • Available with spring terminals or screw terminals
  • Terminals accommodate wire sizes from 16AWG to 24AWG
  • Convenient strain relief feature for wires
  • Connection points are labeled with pin numbers
  • No soldering or crimping required
  • Available with Jack Screws or Thumbscrews
  • Approximate dimensions: 2.9"L x 1.7"W x 0.85"H

Accessories

Cable Ties

Cable Ties Use these cable ties for anchoring wires to a variety of Winford breakout boards; provides good strain relief for the wire connections.


Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
DB15HD Female Connector, Spring Terminals:
BRKEGD15HDF-R DB15HD Female Breakout Board with Enclosure, Spring Terminals, Jack Screws $17.65 $16.60 $16.05  Yes
BRKEGD15HDF-T DB15HD Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws $19.80 $18.75 $18.20  Yes
DB15HD Male Connector, Spring Terminals:
BRKEGD15HDM-R DB15HD Male Breakout Board with Enclosure, Spring Terminals, Jack Screws $17.65 $16.60 $16.05  Yes
BRKEGD15HDM-T DB15HD Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws $19.80 $18.75 $18.20  Yes
DB15HD Female Connector, Screw Terminals:
BRKEAD15HDF-R DB15HD Female Breakout Board with Enclosure, Screw Terminals, Jack Screws $17.65 $16.60 $16.05  Yes
BRKEAD15HDF-T DB15HD Female Breakout Board with Enclosure, Screw Terminals, Thumb Screws $19.80 $18.75 $18.20  Yes
DB15HD Male Connector, Screw Terminals:
BRKEAD15HDM-R DB15HD Male Breakout Board with Enclosure, Screw Terminals, Jack Screws $17.65 $16.60 $16.05  Yes
BRKEAD15HDM-T DB15HD Male Breakout Board with Enclosure, Screw Terminals, Thumb Screws $19.80 $18.75 $18.20  Yes

DB15HD Female Connector, Spring Terminals:
BRKEGD15HDF-R
RoHS   Yes
DB15HD Female Breakout Board with Enclosure, Spring Terminals, Jack Screws
QuantityPrice
1+$17.65
10+$16.60
50+$16.05
BRKEGD15HDF-T
RoHS   Yes
DB15HD Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws
QuantityPrice
1+$19.80
10+$18.75
50+$18.20
DB15HD Male Connector, Spring Terminals:
BRKEGD15HDM-R
RoHS   Yes
DB15HD Male Breakout Board with Enclosure, Spring Terminals, Jack Screws
QuantityPrice
1+$17.65
10+$16.60
50+$16.05
BRKEGD15HDM-T
RoHS   Yes
DB15HD Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws
QuantityPrice
1+$19.80
10+$18.75
50+$18.20
DB15HD Female Connector, Screw Terminals:
BRKEAD15HDF-R
RoHS   Yes
DB15HD Female Breakout Board with Enclosure, Screw Terminals, Jack Screws
QuantityPrice
1+$17.65
10+$16.60
50+$16.05
BRKEAD15HDF-T
RoHS   Yes
DB15HD Female Breakout Board with Enclosure, Screw Terminals, Thumb Screws
QuantityPrice
1+$19.80
10+$18.75
50+$18.20
DB15HD Male Connector, Screw Terminals:
BRKEAD15HDM-R
RoHS   Yes
DB15HD Male Breakout Board with Enclosure, Screw Terminals, Jack Screws
QuantityPrice
1+$17.65
10+$16.60
50+$16.05
BRKEAD15HDM-T
RoHS   Yes
DB15HD Male Breakout Board with Enclosure, Screw Terminals, Thumb Screws
QuantityPrice
1+$19.80
10+$18.75
50+$18.20

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
