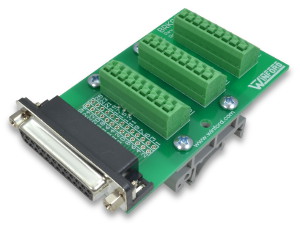

DB25 Breakout Board with Spring Connection Terminals
- Available with DB25 Male or Female connector
- Quick connection spring cage terminal blocks for all pins, plus shield
- Solder pad connection space / test points for all pins, plus shield
- Supports addition of .1" pin headers
- DIN rail mountable
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its DB25 connector out to spring terminals. This product is available with both male and female connectors.
Each pin, including shield, is also brought to solder pads (1 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRK25 design or the other DB25 options listed here.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, serial ports, DAQ devices, CNC equipment, and other devices that use a DB-25 connector.
Need something different? We stock a variety of DB25 breakout board styles and form factors. Please have a look!
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
 |
Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures. |
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BRKG25F-R-DIN | DB25 Female Right Angle, DIN Mount |
|
|
|
|
| BRKG25F-R-N | DB25 Female Right Angle, Mounting Holes |
|
|
|
|
| BRKG25F-S-DIN | DB25 Female Straight Connector, DIN Mount |
|
|
|
|
| BRKG25F-S-N | DB25 Female Straight Connector, Mounting Holes |
|
|
|
|
| BRKG25M-R-DIN | DB25 Male Right Angle, DIN Mount |
|
|
|
|
| BRKG25M-R-N | DB25 Male Right Angle, Mounting Holes |
|
|
|
|
| BRKG25M-S-DIN | DB25 Male Straight Connector, DIN Mount |
|
|
|
|
| BRKG25M-S-N | DB25 Male Straight Connector, Mounting Holes |
|
|
|
|
| - | D-Sub Panel Cutout Drawing |
|
|
DB25 Female Right Angle, DIN Mount
DB25 Female Right Angle, Mounting Holes
DB25 Female Straight Connector, DIN Mount
DB25 Female Straight Connector, Mounting Holes
DB25 Male Right Angle, DIN Mount
DB25 Male Right Angle, Mounting Holes
DB25 Male Straight Connector, DIN Mount
DB25 Male Straight Connector, Mounting Holes
D-Sub Panel Cutout Drawing
Connector Style
These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

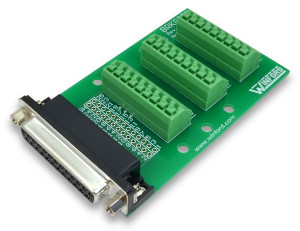

BRKG25F-R-N pictured
Click image to enlarge.

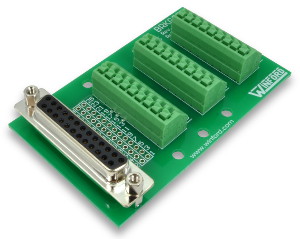

BRKG25F-S-N pictured
Click image to enlarge.Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

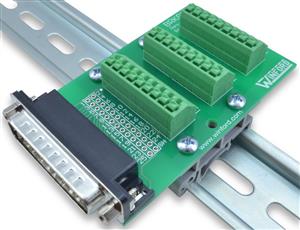

BRKG25M-R-DIN
Click image to enlarge. Rail not included

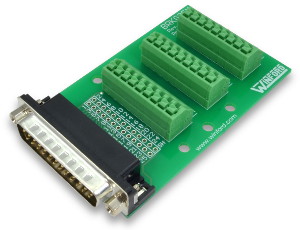

BRKG25M-R-N
Click image to enlarge.Product Details
- DB25 connector
- Quick connection spring cage terminal blocks for all pins, plus shield
- Solder pad connection holes, one (1) per line
- Supports addition of .1" pin headers
- Spring terminals accommodate wire sizes from 16AWG to 24AWG
- Approximate dimensions: 3.5" x 2.1"
- DIN rail mountable
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
DB25 Female Right Angle Connector: |
|||||
| BRKG25F-R-DIN | DB25 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount | $23.00 | $21.40 | Yes | |
| BRKG25F-R-N | DB25 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block | $21.40 | $19.80 | Yes | |
DB25 Female Straight Connector: |
|||||
| BRKG25F-S-DIN | DB25 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Terminal Block, DIN Rail Mount | $23.55 | $21.95 | Yes | |
| BRKG25F-S-N | DB25 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block | $21.95 | $20.35 | Yes | |
DB25 Male Right Angle Connector: |
|||||
| BRKG25M-R-DIN | DB25 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount | $23.00 | $21.40 | Yes | |
| BRKG25M-R-N | DB25 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block | $21.40 | $19.80 | Yes | |
DB25 Male Straight Connector: |
|||||
| BRKG25M-S-DIN | DB25 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount | $23.55 | $21.95 | Yes | |
| BRKG25M-S-N | DB25 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block | $21.95 | $20.35 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $23.00 |
| 10+ | $21.40 |
| Quantity | Price |
|---|---|
| 1+ | $21.40 |
| 10+ | $19.80 |
| Quantity | Price |
|---|---|
| 1+ | $23.55 |
| 10+ | $21.95 |
| Quantity | Price |
|---|---|
| 1+ | $21.95 |
| 10+ | $20.35 |
| Quantity | Price |
|---|---|
| 1+ | $23.00 |
| 10+ | $21.40 |
| Quantity | Price |
|---|---|
| 1+ | $21.40 |
| 10+ | $19.80 |
| Quantity | Price |
|---|---|
| 1+ | $23.55 |
| 10+ | $21.95 |
| Quantity | Price |
|---|---|
| 1+ | $21.95 |
| 10+ | $20.35 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
