M8 3-Pin Breakout Board with Spring Connection Terminals
- Currently available with male 3-pin, A-coded M8 connector
- Spring terminal for each of the 3 lines, plus shield
- Test pads for all 3 lines, plus shield
- Available with DIN rail mounting option or no mounting hardware
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its 3-pin M8 connector out to spring terminals. This product is currently available with A-coded male connectors.
Each pin, including shield, is also brought to a test pad located just behind the corresponding terminal block position. This facilitates convenient probing of the signals.
This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections.
We stock a variety of M8 breakout board styles and form factors. Please have a look!
This breakout board is perfect for production applications as well as experimentation and prototype work.
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BRKGM8A-3MS-DIN | M8 3-Pin Male Breakout, DIN Mount |
|
|
|
|
| BRKGM8A-3MS-N | M8 3-Pin Male Breakout, Mounting Holes |
|
|
|
|
M8 3-Pin Male Breakout, DIN Mount
M8 3-Pin Male Breakout, Mounting Holes
Mounting Options

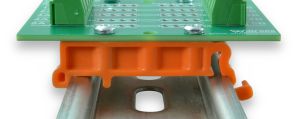

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.
Click image to enlarge.
Click image to enlarge.Product Details
- Spring terminal for each of the 3 lines, plus shield
- Spring terminals accommodate wire sizes from 16AWG to 26AWG
- Available with DIN rail mounting option or no mounting hardware
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
M8 3-Pin Male Connector With Spring Terminals: |
|||||
| BRKGM8A-3MS-DIN | M8 Breakout Board, 3-Pin Male Connector with Shield, A-Coded, Straight Connector, Spring Terminals, DIN Rail Mount | $32.00 | $30.00 | Yes | |
| BRKGM8A-3MS-N | M8 Breakout Board, 3-Pin Male Connector with Shield, A-Coded, Straight Connector, Spring Terminals | $30.50 | $28.50 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $32.00 |
| 10+ | $30.00 |
| Quantity | Price |
|---|---|
| 1+ | $30.50 |
| 10+ | $28.50 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
