Diagnostic Breakout Switch Board: 2x17 0.1" Header
- Pass-through test board with inline switches
- Contains (2) 0.1" pitch 34-pin (2x17) male headers
- Ejector latches on headers provide secure connection and quick disconnection
- Includes Probe test points and Header test points for every signal
- Includes switch for each signal line
- Clearly labeled with connector pin numbers
- Mounting Options: Rubber Feet or DIN Rail
General Description

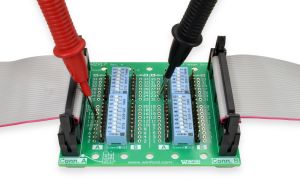

Insert this diagnostic Breakout Test Board into existing cable connections and get access to signals via test points and headers; this is the pass-through function of this board. In addition, switches allow individual signals to be disconnected from the circuit, which aids in diagnostics, troubleshooting, fault tolerance testing, or re-routing specific signals within a cable. This compact design is meant to be inserted into the cabling of a system during operation. Normal system operation can continue while signals are probed and manipulated. It is a handy test point breakout board with inline interruptor switches.
This board contains dual male 2x17 0.1" pitch (2.54mm) IDC34 headers. This connector selection generally allows for very convenient insertion into existing cable configurations, without the use of gender changers, etc.
Click image to enlarge.Applications
- Signal monitoring or measurement
- System Calibration
- Diagnostics, troubleshooting, and debugging
- Signal injection and fault tolerance testing
- Re-routing selected connector signals
Need something different? We stock a variety of dual-row_header breakout board styles and form factors. Please have a look!
A breakout test board may also be referred to as a "measurement breakout", "pass-through board", "test breakout", "inline test adapter", or "breakout testing board".
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model | App Note |
|---|---|---|---|---|---|---|
| BTS1H2X17-DIN | 2x17 Header Diagnostic Board, DIN Mount |
|
|
|
| |
| BTS1H2X17-FT | 2x17 Header Diagnostic Board, Rubber Feet |
|
|
|
| |
| BTS Series | Breakout Test Board Application Note |
|
2x17 Header Diagnostic Board, DIN Mount
2x17 Header Diagnostic Board, Rubber Feet
Breakout Test Board Application Note
Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
BTS1H2X17-DIN
Click image to enlarge. Rail not included
BTS1H2X17-FT
Click image to enlarge.Product Details
- Pass-through test board with inline switches
- Contains (2) 0.1" pitch 34-pin (2x17) male headers
- Ejector latches on headers provide secure connection and quick disconnection
- Includes Probe test points and Header test points for every signal
- Includes switch for each signal line
- Clearly labeled with connector pin numbers
- Approximate dimensions: 3.5" x 2.8"
- Mounting Options: Rubber Feet or DIN Rail
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| BTS1H2X17-DIN | 2x17 0.1" Pitch Breakout Test Board with Switches, DIN Rail Mount | $48.70 | $45.50 | Yes | |
| BTS1H2X17-FT | 2x17 0.1" Pitch Breakout Test Board with Switches, Feet | $47.10 | $43.85 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $48.70 |
| 10+ | $45.50 |
| Quantity | Price |
|---|---|
| 1+ | $47.10 |
| 10+ | $43.85 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
