Diagnostic Breakout Board: DB9 Connector
- Pass-through test board with spring terminals
- Contains (2) DB9 connectors (1 Male, 1 Female) for convenient inline insertion
- Includes Probe test points and Header test points for every signal
- Includes spring terminal for each signal line
- Clearly labeled with connector pin numbers
- Mounting Options: Rubber Feet or DIN Rail
General Description

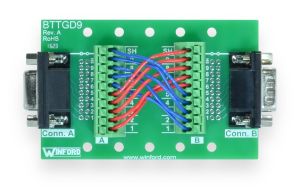

Insert this diagnostic Breakout Test Board into existing cable connections to get access to signals or to re-map connections via test points and spring terminals; this is the pass-through function of this board. This board comes with no connection between the two connectors, each connector pin is brought out to spring terminals allowing for signal cross-wiring or pin re-mapping. This aids in diagnostics, troubleshooting, fault tolerance testing, or re-routing specific signals within a cable. This compact design is meant to be inserted into the cabling of a system during operation.
This board contains dual DB9 connectors (1 Male, 1 Female). This connector selection generally allows for very convenient insertion into existing cable configurations, without the use of gender changers, etc.
Click image to enlarge.Applications
- Signal monitoring or measurement
- System Calibration
- Diagnostics, troubleshooting, and debugging
- Signal injection and fault tolerance testing
- Re-routing selected connector signals
Technically, the correct term for a DB9 connector is DE9, but that term is not commonly used.
Need something different? We stock a variety of DB9 breakout board styles and form factors. Please have a look!
A breakout test board may also be referred to as a "measurement breakout", "pass-through board", "test breakout", "inline test adapter", or "breakout testing board".
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BTTGD9-R-DIN | DB9 Diagnostic Board, DIN Mount |
|
|
|
|
| BTTGD9-R-FT | DB9 Diagnostic Board, Rubber Feet |
|
|
|
|
| - | D-Sub Panel Cutout Drawing |
|
|
DB9 Diagnostic Board, DIN Mount
DB9 Diagnostic Board, Rubber Feet
D-Sub Panel Cutout Drawing
Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
Click image to enlarge.
Click image to enlarge.Product Details
- Pass-through test board with spring terminals
- Contains (2) DB9 connectors (1 Male, 1 Female) for convenient inline insertion
- Includes Probe test points and Header test points for every signal
- Includes spring terminal for each signal line
- Clearly labeled with connector pin numbers
- Approximate dimensions: 3.5" x 2.25"
- Mounting Options: Rubber Feet or DIN Rail
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| BTTGD9-R-DIN | DB9 Breakout Test Board, Right Angle Connectors, Spring Terminals, DIN Rail Mount | $28.75 | $26.25 | Yes | |
| BTTGD9-R-FT | DB9 Breakout Test Board, Right Angle Connectors, Spring Terminals, Rubber Feet | $27.25 | $24.75 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $28.75 |
| 10+ | $26.25 |
| Quantity | Price |
|---|---|
| 1+ | $27.25 |
| 10+ | $24.75 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
