PoE Power Injection Board

PWRINJ01-DIN

PWRINJ01-DIN
(click image to enlarge)
PWRINJ01-DIN
PWRINJ01-FT
PWRINJ01-FT (Overhead View)
  • Allows power to be provided to a PoE device on a non-PoE network
  • Includes fuseholder with fuse installed
  • Includes provision for daisy-chaining power signals
  • Mounting Options: Rubber Feet or DIN Rail
See Also: RJ45 (8P8C) Breakout Boards,   More RJ45 (8P8C) Products,   Network Cables


General Description

The PWRINJ01 provides a convenient method to provide power to a PoE device that is operating on a non-PoE network.

This board includes RJ45 (8P8C) connectors for connecting to the network and the PoE device, and includes terminal blocks for connecting to the power source. A socketed 1A time delay fuse comes installed. The socket makes it easy to replace a blown fuse or to choose a different fuse for your application; see the datasheet for more details.

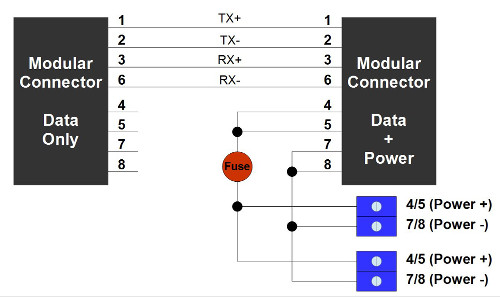

PWRINJ01 Schematic
Schematic of PWRINJ01
EnlargeClick image to enlarge.

Need something different? We stock a variety of RJ45/8P8C breakout board styles and form factors. Please have a look!


A power injection board may also be referred to as a "PoE Power Access Board", "PoE Power Injection Board", or "PoE Power Terminal Board".

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
PWRINJ01-*-DINPower injection board datasheetPDF PDF DWG IGES CAD
PWRINJ01-*-FTPower injection board datasheetPDF PDF DWG IGES CAD
PWRINJ01-*-DIN

Power injection board datasheet

PDF PDF DWG IGES CAD
PWRINJ01-*-FT

Power injection board datasheet

PDF PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mounting Option
DIN Rail Mount
EnlargeClick image to enlarge.
Rubber Feet Mounting Option
Rubber Feet
EnlargeClick image to enlarge.

Product Details

  • Allows power to be provided to a PoE device on a non-PoE network
  • Includes fuseholder with fuse installed
  • Includes provision for daisy-chaining power signals
  • Approximate dimensions: 2.7" x 1.4"
  • Mounting Options: Rubber Feet or DIN Rail

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
PWRINJ01-100S-DIN Power Injector for PoE, 1.0A Slow Fuse, DIN Rail Mount $20.85 $19.25  Yes
PWRINJ01-100S-FT Power Injector for PoE, 1.0A Slow Fuse, Feet $19.25 $17.65  Yes

PWRINJ01-100S-DIN
RoHS   Yes
Power Injector for PoE, 1.0A Slow Fuse, DIN Rail Mount
QuantityPrice
1+$20.85
10+$19.25
PWRINJ01-100S-FT
RoHS   Yes
Power Injector for PoE, 1.0A Slow Fuse, Feet
QuantityPrice
1+$19.25
10+$17.65

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
