Mini Delta Ribbon (MDR) 50-Pin Dual Breakout Board
- Two Mini Delta Ribbon (MDR) connectors
- Screw terminal for each of the 50 lines, plus shield
- Solder pad connection space for all 50 lines, plus shield
- Rubber feet or DIN rail mount
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its 50-pin Mini D Ribbon (MDR) connectors out to screw terminals.
These breakout boards feature two 50-pin MDR connectors (both female) wired 1:1, with all pins connected to screw terminals for easy wiring connections. Having two connectors allows the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored, or to work with "daisy-chained" equipment.
Each pin, including shield, is also brought to solder pads (2 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with Servo Drives, Data Aquisition (DAQ) equipment, I/O cards, and other devices that use a Mini D Ribbon connector.
We stock several MDR breakout board styles and form factors. Please have a look here.
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
MDR Connector Details
The Mini Delta Ribbon (MDR) series of connectors provides a compact arrangement of durable sliding 'ribbon' contacts. The high contact density and good performance at high speeds have yielded many applications for this connector type. These are 'half-pitch' connectors, meaning that the contact spacing is tighter than full-size Centronics connectors, such as those used on our BRKDC36F or BRKDC50F breakout boards. The 'half-pitch' connectors utilize contacts on 0.05" centers.
Winford Engineering currently utilizes MDR connectors from 3M™ on these breakout boards; connector details are listed below.
| MDR Connector Details | |
|---|---|
| Manufacturer | 3M |
| Mfg. Part # | Right Angle: 10250-55F3PC Vertical: N10250-6212PC |
| Threaded Inserts | Right Angle: M2.6 thread Vertical: M2.5 thread (See Note) |
| Latch Blocks | Present |
| Jack Sockets | Not Included |
Note: Other threaded insert options are available. Please contact Winford Engineering to discuss any needs you have.
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model | Document |
|---|---|---|---|---|---|---|
| BRKARMC50FF-S-DIN | 50-Pin MDR Female Right Angle Connector, DIN Mount |
|
|
|
| |
| BRKARMC50FF-S-FT | 50-Pin MDR Female Right Angle Connector, Rubber Feet |
|
|
|
| |
| Connector Guide | Which connector do I have? Consult this helpful identification guide. |
|
50-Pin MDR Female Right Angle Connector, DIN Mount
50-Pin MDR Female Right Angle Connector, Rubber Feet
Which connector do I have? Consult this helpful identification guide.
Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.BRKARMC50FF-S-DIN
Click image to enlarge. Rail not included

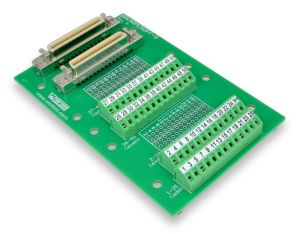

BRKARMC50FF-S-FT
Click image to enlarge.Cables
Winford Engineering offers 50-pin MDR cables (shown below) which are compatible with these breakout boards.
Click image to enlarge.Applications and Compatible Connectors
This breakout board is general-purpose in nature and useful when interfacing to a variety of equipment. The servo drive / servo controller market often uses the 50-pin MDR connector to interface to other equipment. This breakout board is designed to work with this type of system to split out I/O signals for connection to other equipment. Servo equipment with the 50-pin MDR connector, and other compatible connector series includes, but is not limited to, the following:
- Mitsubishi MELSERVO (MR family -- MR-J3, etc)
- Yaskawa MP940, MP3200, MP Series, MPiec series, and others
- Panasonic MINAS series
- Applied Motion Products Servo Drives such as SV2A, SV2B, and SV2D drives
- TE/Tyco "SCSI 0.050" connector series e.g. 5-2232346-1, 5-2271101-1, 5-2232516-1, and others
- TE "CHAMP Series II" connector series e.g. 5175677-8, 2-5178238-8, and others
- and others...
Some equipment vendors offer breakout modules and cables to accommodate convenient wiring for their equipment. Others offer a cable with a 50-pin MDR connector on one end and wire pigtails on the other end. (One such example is the Mitsubishi MR-J3CCN1CBL cable.) Winford Engineering's MDR breakout boards are intended as an alternative option, terminating the equipment I/O pins on a convenient, compact breakout board.
Product Details
- Mini D-Ribbon (Mini Delta Ribbon, MDR, Mini Centronics) 50-pin connectors
- Screw terminal for each of the 50 lines, plus shield
- Screw terminals accommodate wire sizes from 16AWG to 26AWG
- Approximate dimensions: 4.5" x 2.9"
- Rubber feet or DIN rail mount
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
Mini D Ribbon 50-Pin Straight Connector: |
|||||
| BRKARMC50FF-S-DIN | Mini Centronics/MDR 50-Pin Female Dual Breakout Board, Straight Connector, M2.5 Thread, DIN Rail Mount | $76.50 | $69.55 | Yes | |
| BRKARMC50FF-S-FT | Mini Centronics/MDR 50-Pin Female Dual Breakout Board, Straight Connector, M2.5 Thread, Feet | $74.90 | $67.95 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $76.50 |
| 10+ | $69.55 |
| Quantity | Price |
|---|---|
| 1+ | $74.90 |
| 10+ | $67.95 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
