50-Pin VHDCI Breakout Board
- 50-pin VHDCI connector
- Screw terminal for each of the 50 lines, plus shield
- Solder pad connection space for all 50 lines and shield
- Supports addition of .1" pin headers
- Fast and easy connections
- Perfect for prototyping and permanent installations
- Rubber feet or DIN rail mount
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its 50-pin VHDCI (Very High Density Interconnect) connector out to screw terminals.
Each pin, including shield, is also brought to solder pads (2 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, control systems, and other devices that use a 50-pin VHDCI (Very High Density Cable Interconnect) connector.
Need something different? We stock several VHDCI breakout board styles and form factors. Please have a look!
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model | Document |
|---|---|---|---|---|---|---|
| BRKAVH50FV1-R-DIN | VHDCI, Right Angle, DIN Mount |
|
|
|
| |
| BRKAVH50FV1-R-FT | VHDCI, Right Angle, DIN Mount |
|
|
|
| |
| Connector Guide | Which connector do I have? Consult this helpful identification guide. |
|
VHDCI, Right Angle, DIN Mount
VHDCI, Right Angle, DIN Mount
Which connector do I have? Consult this helpful identification guide.
VHDCI Connector Details
The VHDCI connector provides a compact arrangement of sliding contacts. The high contact density (0.8mm pitch) and good performance at high speeds make this connector a good choice for numerous applications with devices that use a 50-pin VHDCI connector. For these breakout boards, Winford Engineering currently utilizes VHDCI connectors from TE™. Connector details are listed below.
| VHDCI Connector Details | |||
|---|---|---|---|
| Manufacturer | TE | ||
| Mfg. Part # | 6658751-1 | ||
| Jack Sockets | M2 x 0.4 female thread | ||
The connector used on these breakout boards contains screw locks/jack screws for securing a mating cable. The jack screws accept M2 x 0.4 thread screws.
Click image to enlarge.
Click image to enlarge.Mounting Options

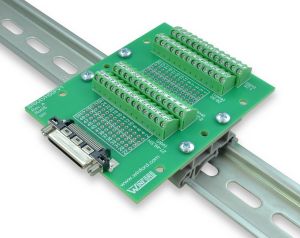

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
Click image to enlarge.
Click image to enlarge.Cables
Winford Engineering offers 50-pin VHDCI cables (shown below) which are compatible with these breakout boards.
CBVH50MV2-6 pictured
Click image to enlarge.Product Details
- 50-pin VHDCI connector
- Connector contains jack screws
- Screw terminal for each of the 50 lines, plus shield
- Solder pad connection holes, two (2) per line
- Supports addition of .1" pin headers
- Screw terminals accommodate wire sizes from 16AWG to 26AWG
- Approximate dimensions: 3.74"; x 2.9"
- Rubber feet or DIN rail mount
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
VHDCI, 50-Pin Female Right Angle Connector: |
|||||
| BRKAVH50FV1-R-DIN | VHDCI 50-Pin Female Breakout Board, R/A, Screw Terminals, DIN Rail Mount | $104.75 | $99.40 | Yes | |
| BRKAVH50FV1-R-FT | VHDCI 50-Pin Female Breakout Board, R/A, Screw Terminals, Feet | $103.15 | $97.80 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $104.75 |
| 10+ | $99.40 |
| Quantity | Price |
|---|---|
| 1+ | $103.15 |
| 10+ | $97.80 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
