VHDCI 50-Pin Cables

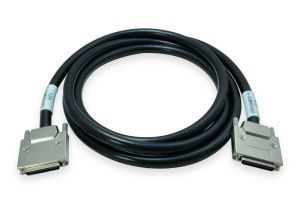

CBVH50MV2-6 (VHDCI Cable)

(click image to enlarge)

VHDCI 50-pin connectors
Male connector on each end
Metal connector hoods
Shielded, twisted pair wiring

Scroll to Buy

See Also: 50-pin VHDCI Breakout Board, 68 Pin VHDCI Cables, All Cables

General Description

Centronics, MDR, VHDCI, HPDSUB Connector Guide

Use these cables to interconnect equipment which utilizes 50-pin VHDCI (Very High Density Cable Interconnect) connectors. These attractive cables feature 50-pin VHDCI male connectors on each end, metal connector hoods, twisted pair wiring, and a shielded cable jacket. VHDCI connectors utilize sliding ribbon contacts instead of standard pins. This connector provides a highly compact arrangement of contacts which is particularly useful in arrangements where space is limited. VHDCI connectors are also sometimes called Very High Density Connector Interfaces.

VHDCI Breakout Boards

These VHDCI cables are compatible with Winford Engineering's 50-pin VHDCI breakout boards, shown below.

BRKAVH50FV1-R-FT
Enlarge

Click image to enlarge.

BRKAVH50FV1-R-DIN
Enlarge

Click image to enlarge.

Product Documents

Part #	Description	Data Sheet	PDF Drawing
CBVH50MV2-x	VHDCI Premium 50-pin Male-Male Cable
CBVH50M-x	VHDCI Basic 50-pin Male-Male Cable

CBVH50MV2-x

VHDCI Premium 50-pin Male-Male Cable

CBVH50M-x

VHDCI Basic 50-pin Male-Male Cable

Example Mating Connector

This cable mates with TE Connectivity Part# 6658751-1 which they describe as a CHAMP 0.8mm pitch connector. There are likely a number of other parts and manufacturers with mating connectors as well.

Product Details

VHDCI 50-pin connectors
Metal connector hoods
Shielded, twisted pair wiring

Series Comparison: Basic vs Premium (V2)

The Premium (CBVH50MV2) cables offers enhanced features compared to the Basic (CBVH50M) series. We will eventually be discontinuing the Basic series.


	Basic CBVH50M	Premium CBVH50MV2
Termination	IDC (Insulation Displacement)	Soldered
AWG	30	28
Labeled Ends	None	Part# & Length
Lifecycle	To be discontinued	Active

Pricing and Ordering

Product #	Description	1+	10+	RoHS
Premium (V2) Series:
CBVH50MV2-6	VHDCI Premium Cable, 50-Pin Male-Male, 28 AWG, Soldered, 6Ft	$62.05	$57.80	Yes
Basic Series:
CBVH50M-6	VHDCI Basic Cable, 50-Pin Male-Male, 6Ft	$58.00	$54.00	Yes

Premium (V2) Series:

CBVH50MV2-6

RoHS Yes

VHDCI Premium Cable, 50-Pin Male-Male, 28 AWG, Soldered, 6Ft

Quantity	Price
1+	$62.05
10+	$57.80

Basic Series:

CBVH50M-6

RoHS Yes

VHDCI Basic Cable, 50-Pin Male-Male, 6Ft

Quantity	Price
1+	$58.00
10+	$54.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
