Axial Component to Screw Terminal Adapter Board
- Easily connect to Axial components via screw terminals
- Holds up to five components
- Makes field wiring simple
- Can hold components of various lengths
General Description
These adapter boards / breakout boards are axial component holders which greatly simplify and streamline the wiring process. Multiple solder pads are provided to accommodate various component lengths. To install, simply solder the axial components into the provided solder pads on the adapter board. Any remaining solder pads can be used for test points or any additional connections. Once a component is installed in the adapter board, simply connect to each component pin via the corresponding screw terminal. The 5mm pitch screw terminals provide comfortable space for wiring.
This adapter board can accommodate components with a lead spacing of 0.3" to 0.9" and a body diameter up to ~0.26"; it can hold up to five components. For more dimension details, please see the product drawing.
This product is designed to accommodate higher-power components. With all component positions active, maximum component current is 5A. Please contact Winford for any additional questions about power ratings.
Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

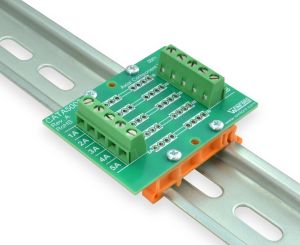

Click image to enlarge.
Click image to enlarge.Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| CATA5005-DIN | 5 Axial Components, DIN Mount |
|
|
|
|
| CATA5005-FT | 5 Axial Components, Rubber Feet |
|
|
|
|
5 Axial Components, DIN Mount
5 Axial Components, Rubber Feet
Product Details
- Easily connect to Axial components via screw terminals
- Holds up to five components
- Each axial pin is accessible via a clearly numbered screw terminal. This makes wiring quick and easy.
- Screw terminals accommodate wire sizes from 16AWG to 30AWG
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| CATA5005-DIN | Axial Component Holder Board, 5-Position, 5mm Screw Terminals, DIN Rail Mount | $16.00 | $15.00 | Yes | |
| CATA5005-FT | Axial Component Holder Board, 5-Position, 5mm Screw Terminals, Rubber Feet | $14.50 | $13.50 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $16.00 |
| 10+ | $15.00 |
| Quantity | Price |
|---|---|
| 1+ | $14.50 |
| 10+ | $13.50 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
