MDR (Mini Delta Ribbon) 36-Pin Cables
- MDR 36-pin connectors
- Male connector on each end
- Overmolded ends with strain reliefs
- Twisted pair wiring with cable shield
General Description
Use these cables to interconnect equipment which utilizes 36-pin MDR (Mini Delta Ribbon) connectors. These attractive cables feature 36-pin MDR Male connectors on each end, overmolded ends with strain reliefs, twisted pair wiring, and a shielded cable jacket. Latches secure the cable to the mating connector. These cables are general purpose and are compatible with Winford Engineering's 36-pin Mini D-Ribbon breakout boards.
MDR Connector Details
The Mini Delta Ribbon (MDR) series of connectors provides a compact arrangement of durable sliding 'ribbon' contacts. The high contact density and good performance at high speeds have yielded many applications for this connector type. These are 'half-pitch' connectors, meaning that the contact spacing is tighter than full-size Centronics connectors, such as those used on our BRKDC36F or BRKDC50F breakout boards. The 'half-pitch' connectors utilize contacts on 0.05" centers.
Twisted Pairing
This cable utilizes twisted pair wiring. The pair mapping is as follows: 1/2, 3/4 ... 33/34, 35/36.
Mini D-Ribbon Breakout Boards

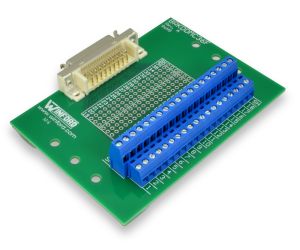

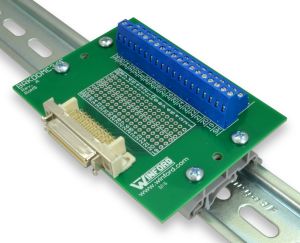

These MDR cables are compatible with Winford Engineering's 36-pin Mini D-Ribbon breakout boards, shown below.
Click image to enlarge.
Click image to enlarge.Product Documents
| Part # | Description | Data Sheet | PDF Drawing | DWG Drawing |
|---|---|---|---|---|
| CBMDR36MA-x | MDR 36-pin Male-Male Cable |
|
|
|
MDR 36-pin Male-Male Cable
Product Details
- MDR 36-pin connectors
- Overmolded ends with strain reliefs
- Twisted pair wiring with cable shield
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| CBMDR36MA-6 | Mini D Ribbon (MDR) Cable, 36-Pin Male-Male, Latches, 6Ft | $29.85 | $25.04 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $29.85 |
| 10+ | $25.04 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
