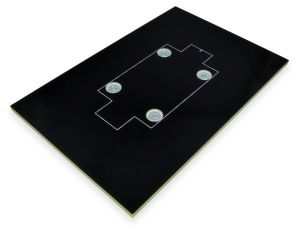

4.0" x 6.0" Solid DIN Rail Mounting Plate
- Easily mount your devices to DIN rail
- Versatile, universal design
- Sturdy construction
- 4.0" x 6.0" plate size
- 44.2mm wide steel DIN bracket
General Description
Use these sturdy general purpose universal DIN rail mounting plates to mount a variety of devices to standard 35mm DIN rail. This product features a flat plate mounting surface to which you can mount your device, and a metal DIN rail bracket secures the plate to the DIN rail.
The mounting plate is made of sturdy 0.125" thick FR4 material (glass-reinforced epoxy laminate material) and is a solid plate. The plate comes with a sturdy steel DIN rail bracket (part# DINM21) installed. The DIN brackets may be purchased alone if you desire the bracket without the adapter plate.
These adapter plates are alternately known as DIN rail mounting plates, DIN adapter plates, DIN rail brackets, etc. We sell many varieties of universal DIN rail mounting plates and DIN rail brackets for numerous applications.
Application Examples
The photos below show how a DIN rail mounting plate might be mounted to a device.
Click image to enlarge.
Click image to enlarge.
Click image to enlarge.Installation and Removal
Mounting Your Devices
To mount a device onto the plate, simply drill holes in the plate to match the mounting holes on your device. The plate material is easy to drill and machine. Note that the outline of the metal DIN rail bracket is shown on the front of the adapter plate; this aids in avoiding the steel DIN clip when drilling mounting holes for your device.
Installing and Removing the Plate Assembly
These DIN rail plate assemblies are easily attached and detached from the DIN rail. When on the rail, the bracket latches to the rail on both the top and bottom lips of the rail. The bracket should be oriented such that the "fixed" (non spring-loaded) end of the bracket mounts to the top of the DIN rail, thus allowing the fixed end to bear the load. The spring-loaded sliding hooks will then grip the bottom of the DIN rail. This arrangement provides the greatest rigidity and load capacity.
There are two methods for removing the plate from the DIN rail:
- Push & Pivot: In most cases, the simplest method is to push up on the assembly, pivot the top out away from the rail, and lower the entire assembly off the rail. This technique does not require access to the release handle on the bracket which makes this method easier.
- Release Handle: If, for some reason, the Push & Pivot method does not work for your application, you can also remove the plates from a DIN rail using the release handle on the bracket. Either pull the handle from the bottom edge of the bracket, or push the handle down from the top edge of the bracket. This releases the sliding hooks that grip the bottom of the rail and allows the bottom edge of the bracket to swing out away from the DIN rail. The entire plate and your mounted device can then be lifted off the DIN rail.
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| DINP01-4060A | DIN Plate, 4.0" x 6.0" |
|
|
|
|
DIN Plate, 4.0" x 6.0"
Product Details
- 4.0" x 6.0" plate size
- Constructed of 0.125" thick FR4 material
- 44.2mm wide steel DIN bracket
- Clips onto 35mm DIN rail
- Color: Black
- DIN Rail not included
Pricing and Ordering
| Product # | Description | 1+ | 10+ | 25+ | 50+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|---|
| DINP01-4060A | DIN Rail Universal Mounting Plate, 4.0" x 6.0"; with Steel Bracket; for 35mm DIN Rail | $15.05 | $13.60 | $13.40 | $13.25 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $15.05 |
| 10+ | $13.60 |
| 25+ | $13.40 |
| 50+ | $13.25 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
