1.38" x 4.0" DIN Rail Mounting Plate - Polycarbonate
- Easily mount your devices to DIN rail
- Versatile, universal design
- Sturdy construction
- 1.38" x 4.0" plate size
- One DINM13 DIN Clip
General Description
Use these sturdy general purpose universal DIN rail mounting plates to mount a variety of devices to standard 35mm DIN rail. This product features a flat plate mounting surface to which you can mount your device, and a nylon DIN rail bracket provides a stable attachment to the DIN rail.
The mounting plate is made of sturdy 0.375" thick Polycarbonate clear plastic material and is a solid plate. The plate comes with a sturdy nylon DIN rail bracket (part# DINM13-RC) installed. The DIN brackets may be purchased alone if you desire the bracket without the adapter plate.
The extra thickness of these plates allow for more versatility in mounting hole options, compared to our other plastic plates. Mounting holes can be drilled anywhere on the plate face, except the DIN Clip screw holes.These adapter plates are alternately known as DIN rail mounting plates, DIN adapter plates, DIN rail brackets, etc. We sell many varieties of universal DIN rail mounting plates and DIN rail brackets for numerous applications.
Application Examples

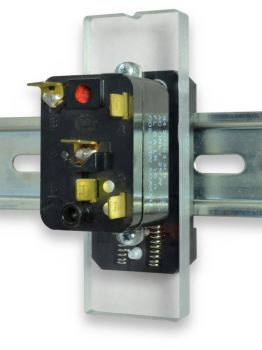

The photos below show how a DIN rail mounting plate might be mounted to a device.
Click image to enlarge.
Click image to enlarge.
Click image to enlarge.
Click image to enlarge.
Click image to enlarge.Mounting Your Devices
To mount a device onto the plate, simply drill holes in the plate to match the mounting holes on your device. The plate material is easy to drill and machine.
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| DINPQ09-1440A | Polycarbonate DIN Plate, 1.38" x 4.0" |
|
|
|
|
Polycarbonate DIN Plate, 1.38" x 4.0"
Product Details
- 1.38" x 4.0" plate size
- Constructed of 0.375" thick Polycarbonate material
- One DINM13 DIN Clip
- Clips onto 35mm DIN rail
- Color: Clear
- DIN Rail not included
Pricing and Ordering
| Product # | Description | 1+ | 10+ | 25+ | 50+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|---|
| DINPQ09-1440A | DIN Rail Universal Mounting Plate, 0.375" Clear Polycarbonate, 1.38" x 4.0"; with Nylon Bracket; for 35mm DIN Rail | $6.00 | $5.25 | $5.00 | $4.85 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $6.00 |
| 10+ | $5.25 |
| 25+ | $5.00 |
| 50+ | $4.85 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
