DB-9 10-Position Adapter
- Available with DB9 Male or Female connector
- Screw terminal for each of the 9 lines, plus shield
- Cable strain relief
- No soldering or crimping required
- Cost effective and reliable cable termination
- Optional enclosure available (sold separately)
General Description
Part of the EasyAdapters line, the FDB9-TB10+ (Female) and MDB9-TB10+ (Male) are DB-9 to 10-position terminal block adapters. They provide connection points for all of the DB-9's pins and the shield ground. The FDB9-TB10+ and MDB9-TB10+ can be used for practically any application requiring a DB-9 male or female connector.
The following pieces are included in a bag with the board:
- Two #4-40 Machine screws - For attaching to mating connector
- Zip tie - For securing wires to PCB using strain relief holes
- Adhesive-backed foam pad - Can be applied to bottom to provide some insulation on solder joints if desired
These are also available with only 5 terminals for the most commonly used connections: FDB9-TB5+ and MDB9-TB5+
Easy Adapters connectivity products are a small line of economical adapter terminal boards that we acquired in 2016. Winford Engineering is now exclusively producing and selling this line of products. To compare features with similar boards, click here.
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| FDB9-TB10+ | Female DB-9 10-Position Adapter |
|
|
|
|
| MDB9-TB10+ | Male DB-9 10-Position Adapter |
|
|
|
|

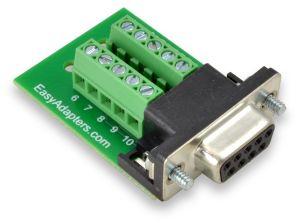

Female DB-9 10-Position Adapter
Male DB-9 10-Position Adapter
Enclosure
We offer an optional plastic enclosure (sold separately), part number XDB9-TB-H1, for the DB9 Easy Adapters boards. This hood works for all of the Easy Adapters DB9 breakout boards. This provides additional protection for wires, insulation for conductive surfaces, and improved aesthetics. Installation is simple; simply insert the board in the lower half of the shell, tie-wrap the wires down as a strain-relief, screw in the thumb screws, and snap in the top half of the shell. Oversized, knurled thumbscrews fasten the assembly to the mating connector and are easy to operate.
Click image to enlarge.
Click image to enlarge.
Click image to enlarge.Product Details
- DB9 connector
- Screw terminal for each of the 9 lines, plus shield
- Screw terminals accommodate wire sizes from 16AWG to 24AWG
- Cable strain relief
- Connection points are labeled with pin numbers
- Supports non-standard AMX & Crestron control ports
- No soldering or crimping required
- Cost effective and reliable cable termination
- Optional enclosure available (sold separately)
- Machine screws secure adapter to device
- Dimensions - Height 0.62in (15.7mm), Width 1.22in (31.0mm), Depth 1.94in (49.3mm)
RS-232 Standard Pin Assignment
| Pin | Name |
|---|---|
| 1 | Data Carrier Detect (DCD) |
| 2 | Receive Data (RXD) |
| 3 | Transmit Data (TXD) |
| 4 | Data Terminal Ready (DTR) |
| 5 | Signal Ground (GND) |
| 6 | Data Set Ready (DSR) |
| 7 | Request To Send (RTS) |
| 8 | Clear To Send (CTS) |
| 9 | Ring Indicator (RI) |
| 10 | Shell/Shield Ground |
AMX/Crestron Non-Standard Pin Assignment
Many customers utilize these boards for AMX and Crestron system control ports, which can be used for RS-232, RS-422, or RS-485. The pinout for these systems is provided below for reference:
| Pin | Name | RS-232 | RS-422 | RS-485 |
|---|---|---|---|---|
| 1 | Receive Data (RX-) | X | X | |
| 2 | Receive Data (RXD) | X | ||
| 3 | Transmit Data (TXD) | X | ||
| 4 | Transmit Data (TX+) | X | X | |
| 5 | Signal Ground (GND) | X | X | |
| 6 | Receive Data (RX+) | X | X | |
| 7 | Request To Send (RTS) | X | ||
| 8 | Clear To Send (CTS) | X | ||
| 9 | Transmit Data (TX-) | X | X | |
| 10 | Shell/Shield Ground |
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
Pricing and Ordering
| Product # | Description | 1+ | 4+ | 10+ | 20+ | 25+ | 50+ | 100+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|
DB9 Female Connector (without Enclosure): |
||||||||||
| FDB9-TB10+ | Easy Adapters Female DB-9 10-Position Adapter | $8.47 | $8.06 | $8.06 | $7.67 | $7.67 | $7.31 | $7.31 | Yes | |
DB9 Male Connector (without Enclosure): |
||||||||||
| MDB9-TB10+ | Easy Adapters Male DB-9 10-Position Adapter | $8.47 | $8.06 | $8.06 | $7.67 | $7.67 | $7.31 | $7.31 | Yes | |
Enclosure: |
||||||||||
| XDB9-TB-H1 | Hood and Thumbscrews for Easy Adapters DB9 Adapters | $5.15 | $5.15 | $4.85 | $4.85 | $4.75 | $4.55 | $4.05 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $8.47 |
| 4+ | $8.06 |
| 10+ | $8.06 |
| 20+ | $7.67 |
| 25+ | $7.67 |
| 50+ | $7.31 |
| 100+ | $7.31 |
| Quantity | Price |
|---|---|
| 1+ | $8.47 |
| 4+ | $8.06 |
| 10+ | $8.06 |
| 20+ | $7.67 |
| 25+ | $7.67 |
| 50+ | $7.31 |
| 100+ | $7.31 |
| Quantity | Price |
|---|---|
| 1+ | $5.15 |
| 4+ | $5.15 |
| 10+ | $4.85 |
| 20+ | $4.85 |
| 25+ | $4.75 |
| 50+ | $4.55 |
| 100+ | $4.05 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
