DB37 Bus Boards
- Qty (4) DB37 connectors
- Easily split/chain/wye DB37 connections
- Rubber feet or DIN rail mount
General Description
These buss boards provide a total of four (4) DB37 connectors, with all 37 pins of each connector wired together 1:1 as a buss. These boards provide an easy way to join, split out, create wye (Y) connections, or chain together multiple DB37 connections. Please note that not all equipment is designed or suitable to have its connections split out to multiple places. This board simply wires all connectors together and must be used with equipment for which that is appropriate.
These boards are available with mounting holes and rubber feet, or with DIN rail mounting clips.
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BUSD37-1F3M-DIN | DB37 Bus, 1 Female, 3 Male, DIN Mount |
|
|
|
|
| BUSD37-1F3M-FT | DB37 Bus, 1 Female, 3 Male, Rubber Feet |
|
|
|
|
| BUSD37-1M3F-DIN | DB37 Bus, 1 Male, 3 Female, DIN Mount |
|
|
|
|
| BUSD37-1M3F-FT | DB37 Bus, 1 Male, 3 Female, Rubber Feet |
|
|
|
|

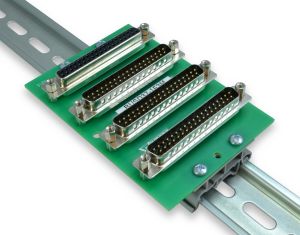

DB37 Bus, 1 Female, 3 Male, DIN Mount
DB37 Bus, 1 Female, 3 Male, Rubber Feet
DB37 Bus, 1 Male, 3 Female, DIN Mount
DB37 Bus, 1 Male, 3 Female, Rubber Feet
Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
Click image to enlarge.
Click image to enlarge.Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
(1) DB37 Female to (3) DB37 Male Connectors: |
|||||
| BUSD37-1F3M-DIN | DB37 Buss Board, 1 Female to 3 Male, DIN Rail Mount | $40.00 | $38.00 | Yes | |
| BUSD37-1F3M-FT | DB37 Buss Board, 1 Female to 3 Male, Feet | $38.50 | $36.50 | Yes | |
(1) DB37 Male to (3) DB37 Female Connectors: |
|||||
| BUSD37-1M3F-DIN | DB37 Buss Board, 1 Male to 3 Female, DIN Rail Mount | $40.00 | $38.50 | Yes | |
| BUSD37-1M3F-FT | DB37 Buss Board, 1 Male to 3 Female, Feet | $38.50 | $37.00 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $40.00 |
| 10+ | $38.00 |
| Quantity | Price |
|---|---|
| 1+ | $38.50 |
| 10+ | $36.50 |
| Quantity | Price |
|---|---|
| 1+ | $40.00 |
| 10+ | $38.50 |
| Quantity | Price |
|---|---|
| 1+ | $38.50 |
| 10+ | $37.00 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
