M12 4-Pin Breakout Boards
- Available with male or female 4-pin, A-coded or D-coded M12 connector
- Screw terminal for each of the 4 lines, plus shield
- Available with DIN rail mounting option or no mounting hardware
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its 4-pin M12 connector out to screw terminals. This product is available with both male and female, A-coded or D-coded connectors.
Each pin of these boards, including shield, is brought to a test pad located just behind the corresponding terminal block position. However, BRKM12A-4FS does not include test points, as it is an older design. All versions have larger copper traces, which allow for higher currents.
We stock a variety of M12 breakout board styles and form factors. Please have a look! For a smaller form factor M12 breakout board designed for panel mounting, please click here.
This breakout board is perfect for production applications as well as experimentation and prototype work.
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BRKM12D-4FS-DIN | D-Coded M12 4-Pin Female Breakout, DIN Mount |
|
|
|
|
| BRKM12D-4FS-N | D-Coded M12 4-Pin Female Breakout, Mounting Holes |
|
|
|
|
| BRKM12D-4MS-DIN | D-Coded M12 4-Pin Male Breakout, DIN Mount |
|
|
|
|
| BRKM12D-4MS-N | D-Coded M12 4-Pin Male Breakout, Mounting Holes |
|
|
|
|
| BRKM12A-4FS-DIN | A-Coded M12 4-Pin Female Breakout, DIN Mount |
|
|
|
|
| BRKM12A-4FS-N | A-Coded M12 4-Pin Female Breakout, Mounting Holes |
|
|
|
|
| BRKM12A-4MS-DIN | A-Coded M12 4-Pin Male Breakout, DIN Mount |
|
|
|
|
| BRKM12A-4MS-N | A-Coded M12 4-Pin Male Breakout, Mounting Holes |
|
|
|
|
D-Coded M12 4-Pin Female Breakout, DIN Mount
D-Coded M12 4-Pin Female Breakout, Mounting Holes
D-Coded M12 4-Pin Male Breakout, DIN Mount
D-Coded M12 4-Pin Male Breakout, Mounting Holes
A-Coded M12 4-Pin Female Breakout, DIN Mount
A-Coded M12 4-Pin Female Breakout, Mounting Holes
A-Coded M12 4-Pin Male Breakout, DIN Mount
A-Coded M12 4-Pin Male Breakout, Mounting Holes
Mounting Options

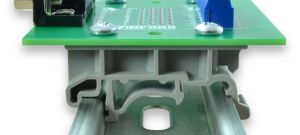

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

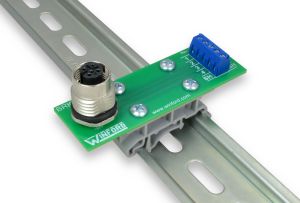

Click image to enlarge.

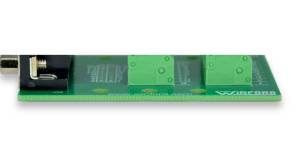

Click image to enlarge.Product Details
- Screw terminal for each of the 4 lines, plus shield
- Screw terminals accommodate wire sizes from 16AWG to 26AWG
- Available with DIN rail mounting option or no mounting hardware
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
M12 A-Code 4-Pin Female Connector: |
|||||
| BRKM12A-4FS-DIN | M12 Breakout Board, 4-Pin Female Connector with Shield, A-Coded, Straight Connector, Screw Terminals, DIN Rail Mount | $31.05 | $28.80 | Yes | |
| BRKM12A-4FS-N | M12 Breakout Board, 4-Pin Female Connector with Shield, A-Coded, Straight Connector, Screw Terminals | $29.45 | $27.20 | Yes | |
M12 A-Code 4-Pin Male Connector: |
|||||
| BRKM12A-4MS-DIN | M12 Breakout Board, 4-Pin Male Connector with Shield, A-Coded, Straight Connector, Screw Terminals, DIN Rail Mount | $31.05 | $28.80 | Yes | |
| BRKM12A-4MS-N | M12 Breakout Board, 4-Pin Male Connector with Shield, A-Coded, Straight Connector, Screw Terminals | $29.45 | $27.20 | Yes | |
M12 D-Code 4-Pin Female Connector: |
|||||
| BRKM12D-4FS-DIN | M12 Breakout Board, 4-Pin Female Connector with Shield, D-Coded, Straight Connector, Screw Terminals, DIN Rail Mount | $37.85 | $35.60 | Yes | |
| BRKM12D-4FS-N | M12 Breakout Board, 4-Pin Female Connector with Shield, D-Coded, Straight Connector, Screw Terminals | $36.20 | $33.95 | Yes | |
M12 D-Code 4-Pin Male Connector: |
|||||
| BRKM12D-4MS-DIN | M12 Breakout Board, 4-Pin Male Connector with Shield, D-Coded, Straight Connector, Screw Terminals, DIN Rail Mount | $37.85 | $35.60 | Yes | |
| BRKM12D-4MS-N | M12 Breakout Board, 4-Pin Male Connector with Shield, D-Coded, Straight Connector, Screw Terminals | $36.20 | $33.95 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $31.05 |
| 10+ | $28.80 |
| Quantity | Price |
|---|---|
| 1+ | $29.45 |
| 10+ | $27.20 |
| Quantity | Price |
|---|---|
| 1+ | $31.05 |
| 10+ | $28.80 |
| Quantity | Price |
|---|---|
| 1+ | $29.45 |
| 10+ | $27.20 |
| Quantity | Price |
|---|---|
| 1+ | $37.85 |
| 10+ | $35.60 |
| Quantity | Price |
|---|---|
| 1+ | $36.20 |
| 10+ | $33.95 |
| Quantity | Price |
|---|---|
| 1+ | $37.85 |
| 10+ | $35.60 |
| Quantity | Price |
|---|---|
| 1+ | $36.20 |
| 10+ | $33.95 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
