1.0" x 8.0" DIN Rail Mounting Plate with Cage Nut Slots and Standoffs - Aluminum
- Easily mount your devices to DIN rail
- Versatile mounting with adjustable cage nuts
- Standoffs increase cage nut adjustment range
- Constructed of 0.125" thick Aluminum plate material
- 1.0" x 8.0" plate size
- 25mm wide steel DIN bracket
General Description
If the mounting holes on your device don't match up with holes on our other plates, then these plates may be for you! Slots in these plates allow installation of threaded cage nuts (sold separately) for mounting your devices. The cage nut locations are easily adjustable due to the ability to slide back and forth in the slot, making these plates versatile for mounting a wide variety of devices to standard 35mm DIN rail.
The mounting plate is made of sturdy 0.125" thick Aluminum plate material and comes with 3/8" long standoffs to allow maximum cage nut adjustment range. The plate comes with a sturdy steel DIN rail bracket (part# DINM23) installed. The DIN brackets may be purchased alone if you desire the bracket without the adapter plate.
These adapter plates are alternately known as DIN rail mounting plates, DIN adapter plates, DIN rail brackets, etc. We sell many varieties of universal DIN rail mounting plates and DIN rail brackets for numerous applications.
Application Examples

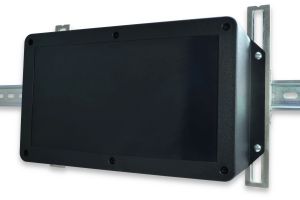

The photo below shows two DIN rail mounting plates being used to mount a device
Click image to enlarge.Installation and Removal
Mounting Your Devices
To mount a device onto the plate, first install the cage nuts from the bottom of the plate, then line up the cage nuts with the mounting holes on your device and use the appropriate screws to secure them.
Installing and Removing the Plate Assembly
These DIN rail plate assemblies are easily attached and detached from the DIN rail. When on the rail, the bracket latches to the rail on both the top and bottom lips of the rail. The bracket should be oriented such that the "fixed" (non spring-loaded) end of the bracket mounts to the top of the DIN rail, thus allowing the fixed end to bear the load. The spring-loaded sliding hooks will then grip the bottom of the DIN rail. This arrangement provides the greatest rigidity and load capacity.
There are two methods for removing the plate from the DIN rail:
- Push & Pivot: In most cases, the simplest method is to push up on the assembly, pivot the top out away from the rail, and lower the entire assembly off the rail. This technique does not require access to the release handle on the bracket which makes this method easier.
- Release Handle: If, for some reason, the Push & Pivot method does not work for your application, you can also remove the plates from a DIN rail using the release handle on the bracket. Either pull the handle from the bottom edge of the bracket, or push the handle down from the top edge of the bracket. This releases the sliding hooks that grip the bottom of the rail and allows the bottom edge of the bracket to swing out away from the DIN rail. The entire plate and your mounted device can then be lifted off the DIN rail.
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| DINPA12-1080J1 | DIN Plate, 1.0" x 8.0", Aluminum, Cage Nut Slots for Metric Hardware, Standoffs |
|
|
|
|
| DINPA12-1080K1 | DIN Plate, 1.0" x 8.0", Aluminum, Cage Nut Slots for Imperial Hardware, Standoffs |
|
|
|
|
DIN Plate, 1.0" x 8.0", Aluminum, Cage Nut Slots for Metric Hardware, Standoffs
DIN Plate, 1.0" x 8.0", Aluminum, Cage Nut Slots for Imperial Hardware, Standoffs
Product Details
- Versatile mounting with adjustable cage nuts
- Constructed of 0.125" thick Aluminum plate material
- 1.0" x 8.0" plate size
- 25mm wide steel DIN bracket
- Clips onto 35mm DIN rail
- Color: silver/gray
- DIN Rail and Cage Nuts not included
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| DINPA12-1080J1 | DIN Rail Mounting Plate for Cage Nuts (SNCJ-x), Aluminum, 1.0" x 8.0"; with Steel Bracket; for 35mm DIN Rail | $14.65 | $13.65 | Yes | |
| DINPA12-1080K1 | DIN Rail Mounting Plate for Cage Nuts (SNCK-x), Aluminum, 1.0" x 8.0"; with Steel Bracket; for 35mm DIN Rail | $14.65 | $13.65 | Yes | |
Metric Cage Nuts: |
|||||
| SNCJ-M3-0.5-B-10 | Cage nut, M3-0.5 Thread, for 0.210" Slot Width (for DINP plate style J), Stainless steel cage, Steel/Zinc nut, bag of 10 | $6.50 | $5.50 | Yes | |
| SNCJ-M4-0.7-A-10 | Cage nut, M4-0.7 Thread, for 0.210" Slot Width (for DINP plate style J), Steel/Zinc cage and nut, bag of 10 | $9.00 | $8.00 | Yes | |
Imperial Cage Nuts: |
|||||
| SNCK-6-32-A-10 | Cage nut, #6-32 Thread, for 0.355" Slot Width (for DINP plate style K), Steel/Zinc cage and nut, bag of 10 | $10.75 | $9.75 | Yes | |
| SNCK-8-32-A-10 | Cage nut, #8-32 Thread, for 0.355" Slot Width (for DINP plate style K), Steel/Zinc cage and nut, bag of 10 | $6.60 | $5.60 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $14.65 |
| 10+ | $13.65 |
| Quantity | Price |
|---|---|
| 1+ | $14.65 |
| 10+ | $13.65 |
| Quantity | Price |
|---|---|
| 1+ | $6.50 |
| 10+ | $5.50 |
| Quantity | Price |
|---|---|
| 1+ | $9.00 |
| 10+ | $8.00 |
| Quantity | Price |
|---|---|
| 1+ | $10.75 |
| 10+ | $9.75 |
| Quantity | Price |
|---|---|
| 1+ | $6.60 |
| 10+ | $5.60 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
